Side view id.

Muncie (left)             Saginaw (center)             Borg Warner (right)





Shifter Info



shifter knob wo console.jpg (28396 bytes) shifter knob 2 piece.jpg (41386 bytes)

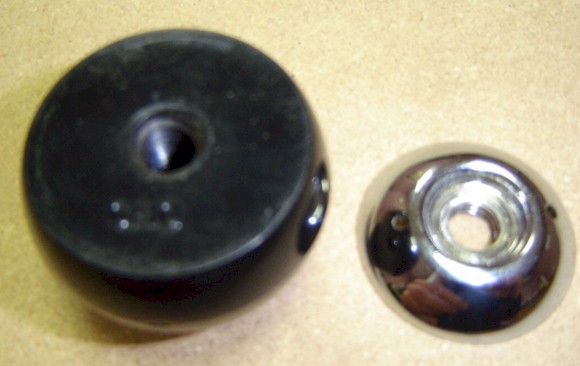

2 piece for 1970 without a console



shifter.jpg (46749 bytes)         shift ball nut.jpg (19235 bytes)       hurst white knob.jpg (19937 bytes)       shifter to floor seal.jpg (46444 bytes)

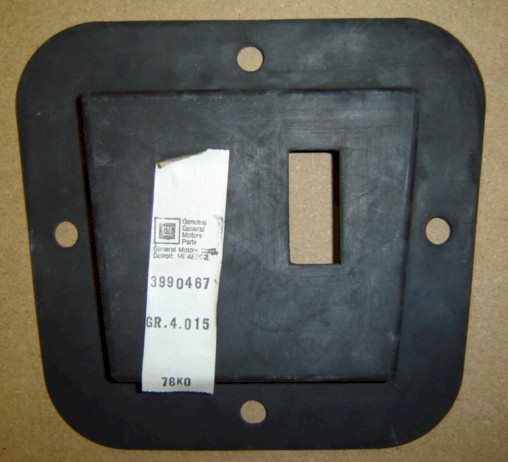

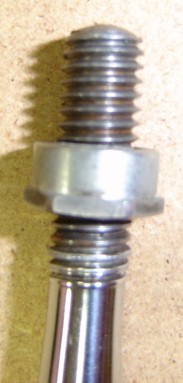

Chrome w/console        Shifter ball nut     Aftermarket Ball           Floor seal for shifter



 hurst comp plus shifter with stock stick.jpg (29219 bytes)

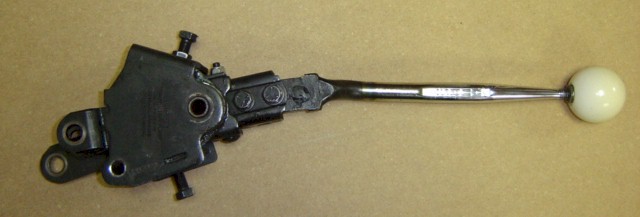

 Hurst Comp/Plus shifter with stock stick shift



hurst comp plus stick and super stick.jpg (33927 bytes)

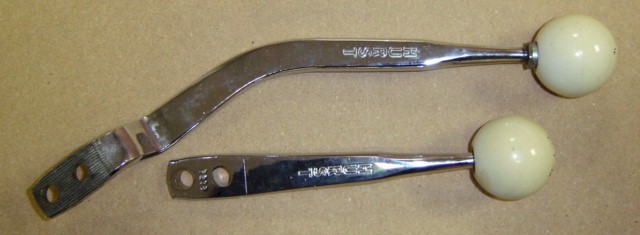

Hurst Comp/Plus shifter stick and Hurst Super shifter stick

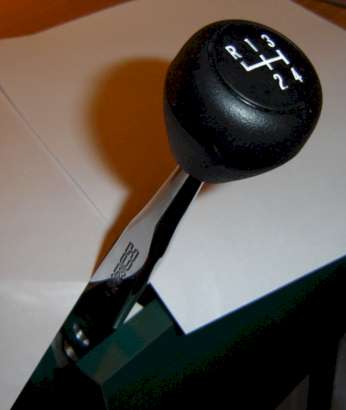

71 shift knob front.jpg (10187 bytes)    71 shift knob side.jpg (11734 bytes)

1971 shifter knob w/o console






         M20                                          M21               M22 (missing 3rd gear)

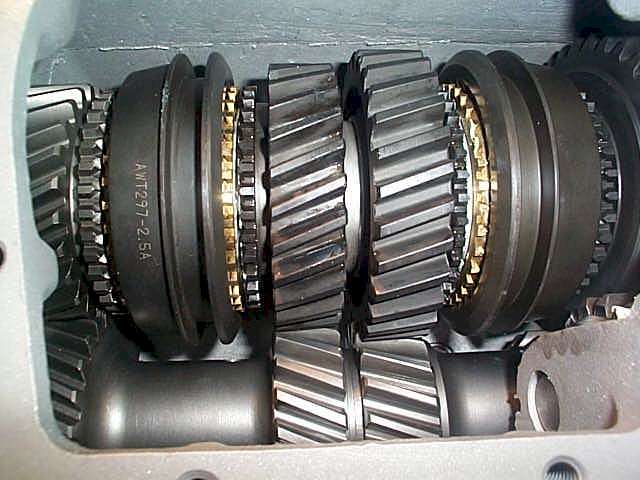

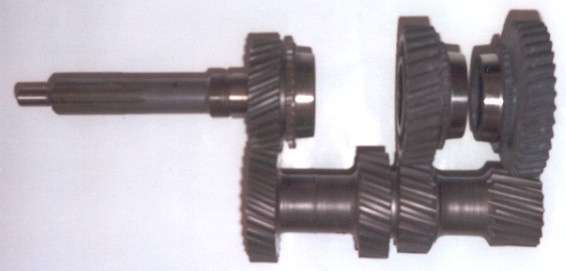

          M22                                  M22 side cover



input shaft bushing.jpg (21229 bytes)

Bronze Input Shaft bushing





speedo reducer1.jpg (26453 bytes)  speedo reducer2.jpg (33610 bytes) speedo reducer3.jpg (52328 bytes)

Part # 3950352 (it has Stewart Warner and ratio .8241 stamped on it). Used on 1970-75 all ST (standard transmissions).

                Speedo cable adapter







doc_muncie_lever_ctrl_rods.jpg (40381 bytes)        doc_muncie_exploded_view.jpg (36983 bytes)

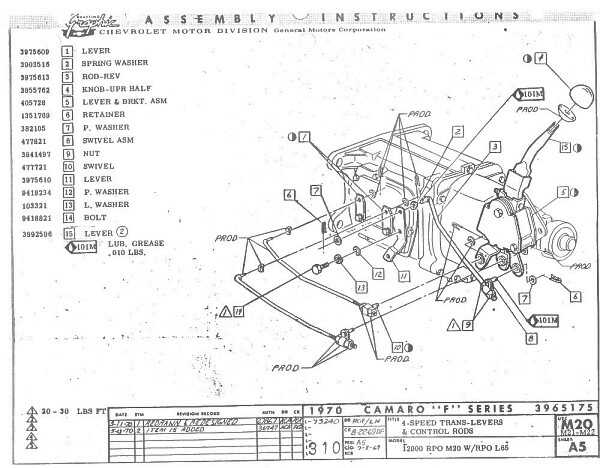

Levers & Control Rods        Exploded view



doc_muncie_parts_desc.jpg (77872 bytes)        doc_muncie_adjust_shifter.jpg (53652 bytes)        doc_clutch_pedal_linkages.jpg (38959 bytes)

Parts description              Shifter adjustments            Clutch pedal linkage

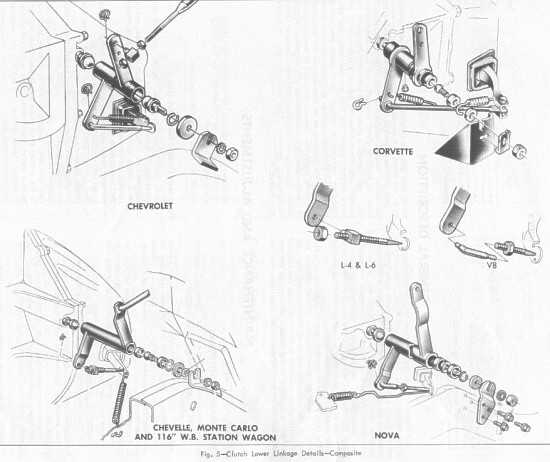

 Clutch lower linkage



Click here on how to ID a Muncie



The Muncie 4-speed transmission was used with many different GM models and engine combinations from 1963 through 1974. The main difference between the Muncie and the Borg-Warner is that the Muncie has a 7-bolt side cover and the Borg Warner has a 9-bolt side cover.



Muncie 4-speeds were produced in two different ratios wide ratio (M-20) and close-ratio (M-21). An extra heavy duty close-ratio version (M-22) was also offered on many of the big-block high-performance models. The choice of transmission was dictated by the engine size and rear-axle ratio. Axle ratios of 3.73 and lower (numerically higher) came with close-ratio transmissions, while axle ratios of 3.55 and higher (numerically lower) used wide-ratio transmissions. In addition, many GM high-performance engines came with M-22 “Rock-Crusher” in the 1970-73 years, however an early version of the M-22 was available as early as 1965 in Corvettes.

The main internal differences in the 3 types of transmissions are listed in the parts below.
• M-20 differs from M-21: Input shaft and Cluster gear
• M-20 & M-21 differ from M-22: Input shaft, Cluster gear, First, Second, Third, Reverse idler gear. All other components interchange, with the exception of production upgrades and changes. For example, 1963-65 synchronizers, blocking rings, etc. do not interchange with 1966 and newer versions, and therefore the transmission must be stock or interchanged as a unit.




                            1970 Information



Casting: 3925660  Years: 1968 - 1970  Ratios: M20 2.52 1st , M21 2.20 1st, M22 2.20 1st

Casting: 3925661  Years: 1970 - 1974  Ratios: M20 2.52 1st , M21 2.20 1st, M22 2.20 1st



Ratios:



Year 1966-1974    Type: M20   Rings: Two    Ratio: 2.52 / 1.88 / 1.46 / 1.00 / 3.11

Year 1963-1974    Type: M21   Rings: One    Ratio: 2.20 / 1.64 / 1.28 / 1.00 / 2.27

Year 1967-1974    Type: M22   Rings: None   Ratio: 2.20 / 1.64 / 1.28 / 1.00 / 2.27



Reading Serial & VIN Numbers



Example 70N553721 P0E08C

70 = 1970

N = Norwood

553721 = the last 6 digits of your VIN

P = Muncie

0 = 1970

E = May

08 = day

C = M22 (A=M20, B=M21)





Swapping GM's Borg Warner T5-speed found in '83 Z28s & Trans Ams



Note max HP in article.
