F2 DX



F2 Skip
Don't hold your breath for this one, but be aware of its potentialities. This is the familiar long-haul skip which bounces shortwave signals around the world in hops of roughly 2000 miles each. During sunspot peaks F2 may extend up to 60 mHz, opening American channel 2 to DX, plus a number of European, African and Oceanic TV stations operating at these frequencies and below. F2 activity is greatest in years of peak sunspot activity. As sunspot activity increases, F2 MUF also rise. F2 at VHF frequencies is not probable in years of low solar activity. If you want to keep track of F2 conditions, which tend to peak in the spring and fall, monitor on a 30-50 mHz radio. Paging stations beyond 1600 miles or so on 35 and 43 mHz will give you a warning when F2 is "up".

Since Hauser wrote his article, some areas, including Britain, have switched all of their TV to UHF, which F2 will not reach. I am editing his original comments accordingly, keeping the essence o f his thought while cutting out perhaps-obsolete station information. For listings of TV stations on these frequencies, consult the WORLD RADIO-TV HANDBOOK or the TELEVISION FACTBOOK, both available in libraries.

Note that some foreign TV audio transmission is AM, unlike North America where FM audio is used. North American DX'ers should check during the morning hours when it is noon, or slightly after noon, at the midpoint of the path to Europe. F2 is a daytime propagation at these frequences, directly depending on solar radiation. F2 may have a very sharp MUF, hovering just below or on channel 2 for long periods. So on your radio, keep a check on known TV audio and video carrier frequencies below channel 2. Beware of false signals if radiation near these last frequencies are from your own or nearby TV sets! On a radio, video sounds like a rough buzz. On a TV, video propagated by F2 is rarely clear; though it may be strong, it will be heavily smeared.

The Solar Cycle (Sunspots and the Solar Cum", followed ycle)

Every 11 years the sun undergoes a period of activity called the "solar maximby a period of quiet called the "solar minimum". During the solar maximum there are many sunspots, solar flares, and coronal mass ejections, all of which can affect communications and weather here on Earth. Sunspot Cycle 23

One way we track solar activity is by observing sunspots. Sunspots are relatively cool areas that appear as dark blemishes on the face of the sun. They are formed when magnetic field lines just below the sun's surface are twisted and poke though the solar photosphere. The twisted magnetic field above sunspots are sites where solar flares are observed to occur, and we are now beginning to understand the connection between solar flares and sunspots.

more info
1. Sunspot Note
[URL: solar-center.stanford.edu/cgi-bin/quizsp...quiz_notes.html]
These sets of questions test your knowledge of sunspots. Flare spray erupts in a plage in this close look at the chromosphere. Hotter denser areas of the..

Solar Terrestrial Activity Report: Report





F2 DX 1988  Results in photo`s




17-12-1988
ch:E2 unid?






F2 DX 1989  Results in photo`s




(HPL) 05-01-1989
ch:E2 unid?




Zwimbabwe
16-02-1989




Garry Smith UK
30-10-1989 ch:2 Iraq ?




Garry Smith UK
30-10-1989 ch:2 Iraq ?




Petri Pöppönen. FI.
10-11-1999 ch:2 Iraq ? (Se DX!)




Kenya ?
15-10-1989






F2 DX 1991  Results in photo`s




Dubai
11-03-1991




Dubai
11-03-1991




Dubai
11-03-1991




Thailand
10-01-1991




Thailand
15-10-1991




Thailand on Satellite
Thaicom 78 East




Kenya ?
23-02-1991




unid R1 USSR
1991




unid R1 USSR
1991




Australia ch:AU-0
Rijn Muntjewerff (RMu)
03-02-1991




Australia ch:AU-0
Toowoomba
05-04-1991




unid R1
13-01-1991






F2 DX 1992   Results in photo`s




Iran
27-01-1992

Iran
27-01-1992

Iran
15-02-1992

Iran
15-02-1992

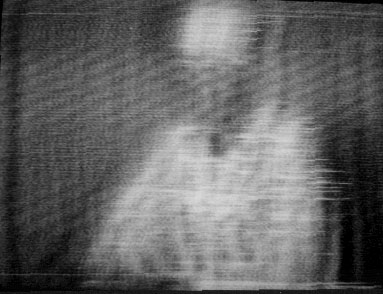

Nigeria TV SOKOTO 17-05-1994  SE/TEP!   Results in photo`s click on the picture to enlarge.!!

NTA TV Sokoto ch:E3

1820-1840 gmt




News reader

text

African male

men






F2 DX 1999  Results in photo`s click on the picture to enlarge.!!



23-11-1999
with id into the right corner
unid ch:R1




23-11-1999
unid ch:R1
1








unid R1
23-11-1999




Thailand logo TV3
on satellite 87 East




Transmitter map
Thailand tv3 and tv9




Thailand ch:E3,.
21-11-1999 Sync.bar



"Thailand ch:E3, November 1999"
Sync.bar on the Thaicom satellite 87 East.

BANGKOK ENTERTAIMENT CH 3


Testcard of TV9






F2 DX 2000  Results in photo`s click on the picture to enlarge.!!



Iran Television  by Satelliet
IRIB TV2
Wolfgang Rößler Germany
November 2000

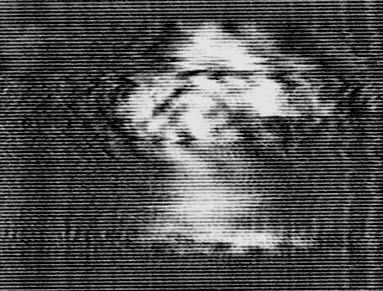

Iran Television by F2 layer on ch:E2
IRIB TV2
Wolfgang Rößler Germany
November 2000



IRIB 2 ch:E2, 30th November 2000
color reception via F2
Wolfgang
WRoessler@compuserve.com



Germany Television by F2 layer on ch:E2
ARD ZDF TV1
Ian,South Africa.



TV1 Maleisia ch:E2 RTM1
2000



F2 DX 2001 Results in photo`s click on the picture to enlarge.!!






Received at 08:45
UTC on R 1, no videotext in syncbar, only a thin white line at he bottom.
Programme starts at 7:30 UTC after showing a UEIT testcard.
Wolfgang 29-10-2001



Petri Pöppönen, Lahti , FINLAND
Turkmenistan-tv1?



Unid from the east 17-12-2001
ch:R1 Unid 10:00 gmt news px!



ch:R1 Khabar tv ??  04-01-2002
R1 px 11:10gmt
in the Netherlands

ch:R1 Khabar tv ??  01-01-2002
picture:
Jurgen Bartels Germany



Khabar tv ??  from the east 06-01-2002
R1 px 08:30gmt



IRIB TV1 px with id/logo
ch:E2 14-01-2002 09:30gmt



F2 and SpE receptions,
KhabarTV here.
R1 is F2 16-01-2002

Petri Pöppönen, Lahti FINLAND

F2 and SpE receptions,
KhabarTV here.
R2 is SpE  30-05-2002

Petri Pöppönen, Lahti FINLAND



E2 Syria TV2
18-01-2002 08:50gmt
in The Netherlands
E2 Syria TV2
18-01-2002  08:50gmt
in The Netherlands
E2 Syria TV2
18-01-2002  08:50gmt
in The Netherlands



R1- 27-01-2002
Khabar TV
R1- 27-01-2002
Khabar TV

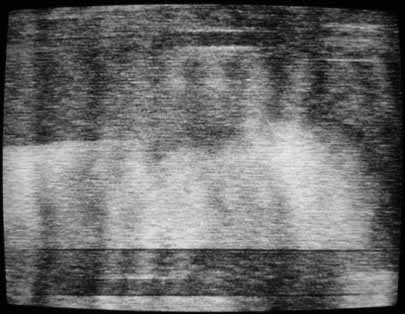

Dubai ch:E2 03-03-2002
Arabic person  0945gmt
Dubai ch:E2 03-03-2002
px. black Sync.b. 0945gmt
