Restoration of
Early Light's
Sailing Dinghy
Page 2


With the quarter knees installed, I decided to lay up the first layer of 3/8" x 1.5" teak on the outside of the transom (both port and starboard sides).

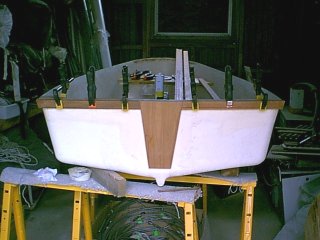

Transom with first of 2 outer laminations



Once the epoxy had cured thoroughly, the inside layer of 3/8" x 1.5" teak was laminated to each side of the transom.

Close-up photo showing the
inner lamination on the
starboard side of the transom



A slightly different view of
the inner laminations on
the transom



The transom with the inner lamination
and one outer lamination complete
after the epoxy has cured



The final layer of 3/8" x 1.5" teak was cut and fit for the outside of the transom (both port and starboard sides) and glued up. Once cured, this finishes the transom work with the exception of sanding and the application of Cetol finish.

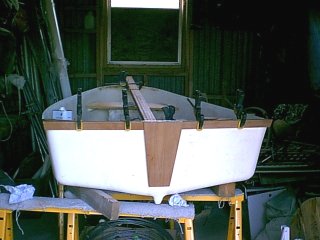

The transom with the final outer
laminations (both port and starboard)
having been cut and dry fit prior
to glueing up.



Final port side transom lamination glued up.



Final starboard side transom lamination glued up.

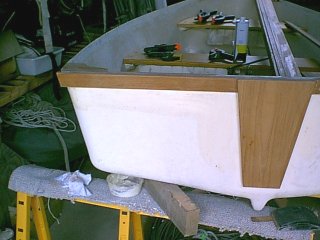

Starboard side of transom with all clamps
removed but still needing some sanding.



View of entire transom with all clamps
removed and all laminations complete.
