FV4601, MBT-80

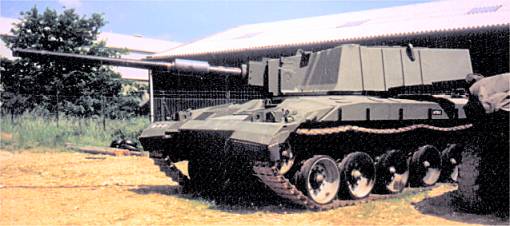

99SP27: ATR2 Hull with FV4211 Turret

I am most grateful to Neil Boston for the following:

MBT-80 was Britain's unilateral programme to produce a Chieftain replacement following the termination of the Anglo-German FMBT project.

99SP27 is currently (2002) at Bovington.

The hull, identified as ATR 2, was an automotive test rig of which it has been said "could only have come out of Chertsey" (FVRDE/MVEE). It is constructed of steel and aluminium in an effort to save weight: steel at the front, aluminium at the rear with a sandwich layer of stainless steel between the two to overcome the impossibility of welding steel and aluminium together. Cracks are apparent at the rear of the vehicle where side and rear plates meet.

I am most grateful to Tom Forbes for providing the the following:

Unfortunately the turret and hull of 99SP27 do not belong together.

The turret was part of a research programme to study offset mounts. If successful it may have found its way into MBT-80.

The turret that is closely related to what would have been inside MBT-80 is the Weapon System Demonstrator (WSD), formerly the Fire Control Rig (FCR),which is also at the Tank Museum. This is mounted on a FV4030 hull.

When MBT-80 was cancelled the FCR turret continued on as a Research Programme at MVEE Chertsey (1984-RARDE Chertsey) where, amongst other things, various gunner's two axis stabilised sights from UK manufacturers were trialled. These sights were with the rig when the MBT-80 project stopped, so in all probability the winning design would have found its way onto MBT-80. The commander's cupola was stabilised in traverse and the sight mirror stabilised in elevation. As part of the programme the commander also received a Panoramic, Thermal Imager, Laser Integrated (PANTILI) Sight. As the title suggests this was a 360 degree rotating thermal imager fitted with a CO2 (Carbon Dioxide) laser. This was fitted on the loaders side of the roof, but the images were available to both the commander and gunner in much the same way as M1A2 now has CITV. Pantili now resides at the Aldershot Military Museum and WSD has a wooden mockup fitted. Internally the FCR had a digital databus linking the main sub systems. The Fire Control Computer processing was fully digital and by the mid-80's the Gun Control Equipment processing was all digital too. For field trials the turret was originally fitted to a Chieftain hull, but as the programme progressed it later transferred to the hull it is now on at Bovington. The turret is actually a FV4211 turret, presumably because the interior would have been similar to MBT-80 (if one was ever to be built). Should you see the WSD at Bovington you will notice thick vertical plates mounted on the turret front either side of the gun, these are simply ballast weights to raise the inertia of the turret to represent that of an armoured turret.
