GREG'S YM1301D with LOADER AND MMM

---

WITH LOADER ON!

---

ENGINE COMPARTMENT!

---

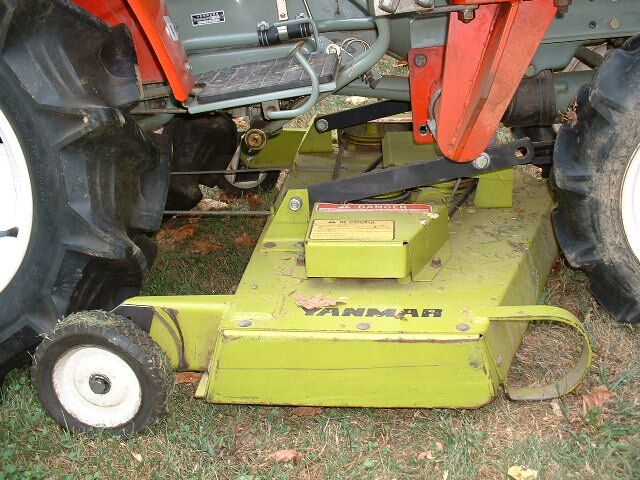

WITH YMM-45 MMM

---

YMM-45 from the other side

---

YMM-45 CLOSEUP

---

YMM-45 CLOSEUP from the other side

---

YMM-45 This is an aluminum spacer I had made to get the front pto to mount up - it goes between the crank pulley and the splined stub/flange.

---

YMM-45 front pto clutch assembly - notice that the grill is out of the hood. I have painted it but haven't had a chance to put it back on. This front clutch assembly interferes with the loader so I relocated the electric clutch under the hood (under the battery).

---

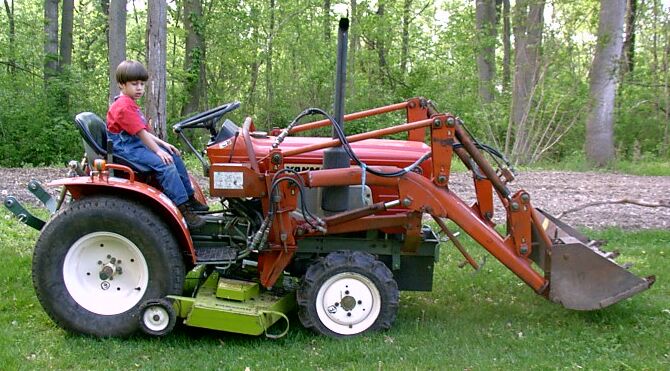

Here is a photo of the finished product. For more photos, take a look at my relocated clutch page. That's dad's big helper in the driver's seat!

---

YMM-45 lift mechanism - cables run from the upper 3pt lift arms around sheaves and forward around sheaves on the deck, and then up to one of the loader mounting bolts. The metal plates bolted to the transmission casing and 3pt hardware came with the YMM-45. Take a look at the 42" snow blade for more information on this lift mechanism.

---

Here is another shot of the 3pt hitch I made for the tractor. I fabricated all of the pieces with the help of a bud of mine who can weld.

---

 I have since built a mounting system and adapter to mount a 54” JD hydraulic lift and angle snow blade on my YM1301D. Check it out here.

---

 Also take a look at Greg's YM1110D!

---
