PIC
Desk Thermometer
By: Steve Hageman
This little project was put together one afternoon when I was bored.
It shows how easy it is to program a PIC to do useful things using C
as a language. The program took only an hour or so from start to
finish.
The schematic is
available in PDF format: Thermometer.pdf
Here is the code
and project documentation:
//-----<
THERMO.C
>----------------------------------------------------
// This is a
very simple application showing the use of a LM34 temp.
// sensor
driving the 16C71's A/D. The simplicity of driving a
multi-
// plexed
display is shown. The code simply alternates between one
// digit and the
next to give the illusion of a two digit display.
//
// The LM34
outputs 10 mV / Deg F, it is scaled by the OPAMP to be
// 1 LSB per Deg
F (Gain = 2) at the input to the A/D. This gives
// one degree
resolution. The maximum temperature readout is 99 deg
// F, which is
good enough for where I live, but you may need to add
// a digit
(ouch, that's hot!).
//

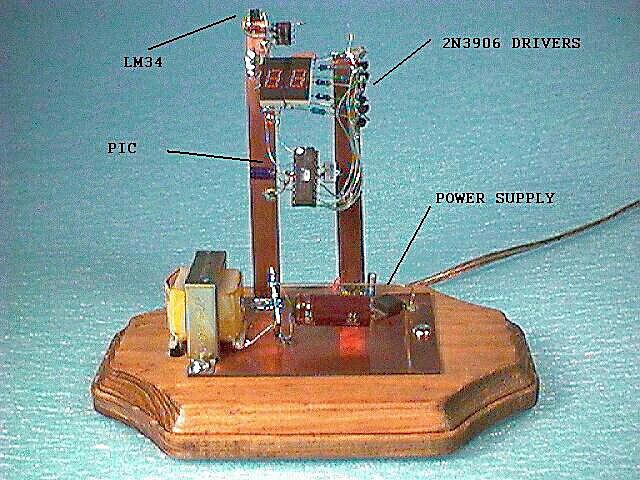

// The digital
thermometer was built on copper clad PCB material and
// mounted to a
craft store wood base. It is self powered by the use
// of a Radio
Shack AC to 12 V transformer and a LM7805
// voltage
regulator.
//
// The
thermometer can be powered by any 5 volt source, even a wall
//
wart.
//
// The code is
written in CCS PIC-C (www.ccsinfo.com)
//---------------------------------------------------------------------
//
// By:
S.C.Hageman - 16Jan96
//
//---------------------------------------------------------------------
//
// Version
Control:
// V.0 - Release
0 - 16Jan96 - SCH
//
//-------------------------------------------------------------------
//-----<
Includes
>--------------------------------------------------
#include
<pic16c71.h>
#include
<picbasic.h>
//-----< PCM
Use directives
>----------------------------------------
#use
delay(clock=4000000)
//-----< Port
definitions >------------------------------------------
#pragma byte
port_a = 5
#pragma byte
port_b = 6
//-----< Pin
definitions
>-------------------------------------------
#pragma bit
Ones_column = port_a.2
#pragma bit
Tens_column = port_a.3
//-----<
Program constants
>-----------------------------------------
#define DOOMSDAY
0
//-----<
Program global variables
>----------------------------------
int
Display_value;
int
Counter;
//-----<
Display routine
>------------------------------------------
set_digit(int
value)
{
//
Set proper values for drivers
// A zero value
on the bit turns the segment on, hence the 0xff code
// turns all
segments off. Bit 7 of port B is not used.
switch(value)
{
case
0: port_b = 0x40; break;
case 1: port_b =
0x79; break;
case 2: port_b =
0x24; break;
case 3: port_b =
0x30; break;
case 4: port_b =
0x19; break;
case 5: port_b =
0x12; break;
case 6: port_b =
0x02; break;
case 7: port_b =
0x78; break;
case 8: port_b =
0x00; break;
case 9: port_b =
0x18; break;
default: port_b
= 0xff;
}
}
//-----< Main
Program >----------------------------------------------
main()
{
//
Set up the ports, clear them
#asm
// Port B to all
outputs, then all off
movlw
0x00
tris
port_b
clrf
port_b
// Port A bits
0,1 to inputs, then the rest off
movlw
0x03
tris
port_a
clrf
port_a
#endasm
// Power up
delay of 1 second
delay_ms(1000);
// Initilize
A/D
setup_port_a(RA0_RA1_ANALOG);
setup_adc(ADC_CLOCK_INTERNAL);
set_adc_channel(RA_0);
// Initilize
global variables
Display_value =
88; // 88 acts as segment test at start
Counter = 0; //
Set sample counter to zero
// Main display
loop
while(!DOOMSDAY)
{
// Sample
temperature every 1 second
if(Counter >=
50)
{ // If here
then it must be time to sample the sensor
//
The 2 below is the offset value from the LM34 I used
Display_value =
read_adc() - 2;
// Reset
counter
Counter =
0;
}
else
{
//
Increment counter
Counter++;
}
// Set ones
column off
ones_column =
OFF;
// Display tens
value
set_digit(Display_value / 10);
tens_column =
ON;
// Wait for
multiplex time
delay_ms(10);
// Set tens
column off
tens_column =
OFF;
// Display ones
value
set_digit(Display_value % 10);
ones_column =
ON;
// Wait for
multiplex time
delay_ms(10);
} // End of main
while loop
}
//-----< Fini
THERMO.C >---------------------------------------------
// Man this was
an easy program to code.....SCH
