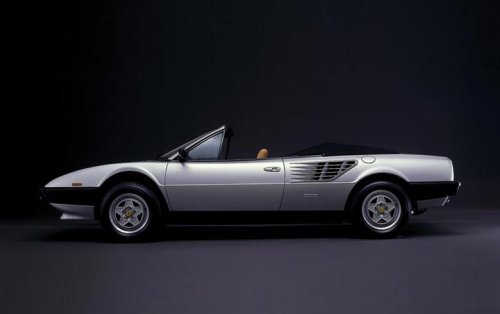

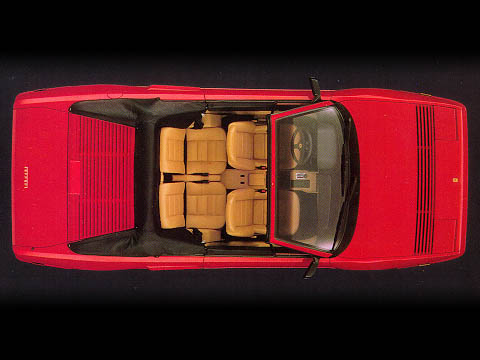

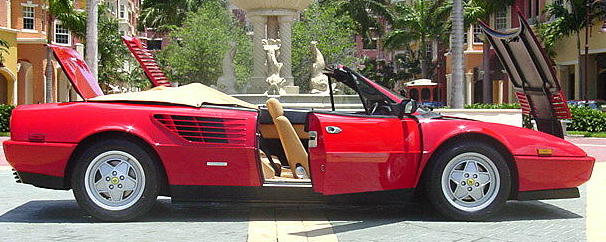

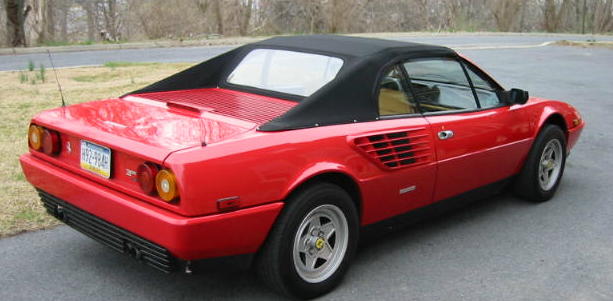

Ferrari Mondial 3.2 Spider

(1985-1989)


In July 1982 it was fitted with four valves per cylinder, which boosted its power by 26 to 240 horsepower, which could be felt from 2000 rpm and really kicked in at 5500 rpm. The Cabriolet shown at the Brussels show in January 1983, was at first only destined for the North American market. It was the first topless Ferrari since the Daytona Spider. Its shape was tinged with honest aggression, even with the roof on, and it turned out to be a success.

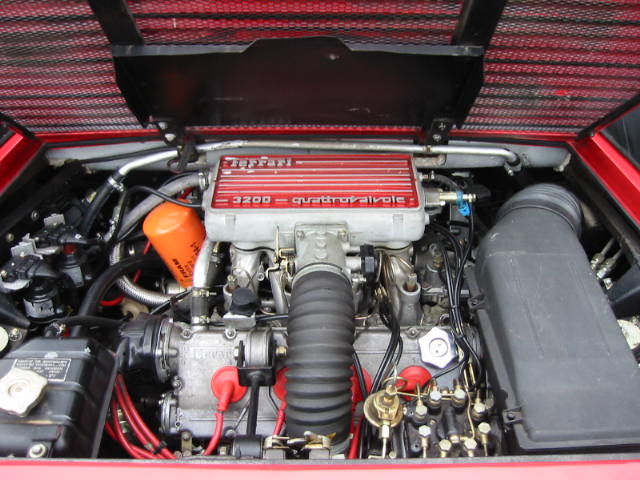

Engine:
Transverse, mid-mounted 90° V8, light alloy cylinder block and head

Bore & Stroke:
83 x 73.6 mm

Unitary and Total Displacement:
398.12/3,184.96 cc

Compression Ratio:
9.8:1

Max. Power Output:
270 bhp at 7,000 rpm; 84 bhp/litre

Timing Gear:
4 valves per cylinder, twin overhead camshafts per cylinder bank

Fuel Feed:
Bosch K-Jetronic mechanical injection

Ignition:
Marelli Microplex electronic

Transmission:
Dry, single-plate clutch, 5-speed gearbox + reverse, ZF limited-slip differential

Chassis:
Tubular

Front Suspension:
Independent, double wishbones, coil springs, telescopic dampers, anti-roll bar

Rear Suspension:
Independent, double wishbones, coil springs, telescopic dampers, anti-roll bar

Brakes:
Ventilated discs, servo assist.



Steering:
Rack and pinion

Cooling System:
1 front radiator

Length:
4535 mm



Width:
1795 mm

Height:
1235 mm

Wheelbase and Front/ Rear Track:
2,650/1,520/1,510 mm

Dry Weight:
1,400 kg

Front Tyres:
205-55 VR 16



Rear Tyres:
225-50 ZR 16

Fuel Tank:
80 litres

Top Speed:
250 km/h
