IJN TONE
SHIPS DATA
Name: Tone
Displacement: 10,500 tons (Standard), 15,000 tons (Full Load)
Dimensions:
Length Overall: 661' 5"
Waterline Length: 644' 7"
Maximum Beam: 63' 7"
Maximum Draft: 35' 7"
Protection:
Sides: 3"
Deck: 0.6"-2"
Turrets: 1.5"
Conning Tower: 1.5"
Armament:
8x8"/50cal (dual mountings)
8x5"/40cal (dual mountings)
12x25mm (Heavy AA)
8x12.7mm Machine Guns (Light AA)
12x24" Torpedo Tubes (triple mountings)
Aircraft: 5
Machinery: 4 geared steam turbines, 8 Kanpon boilers, 90,000 SHP
Speed: 33 knots
Compliment:
Wartime: 850
PHOTO GALLERY

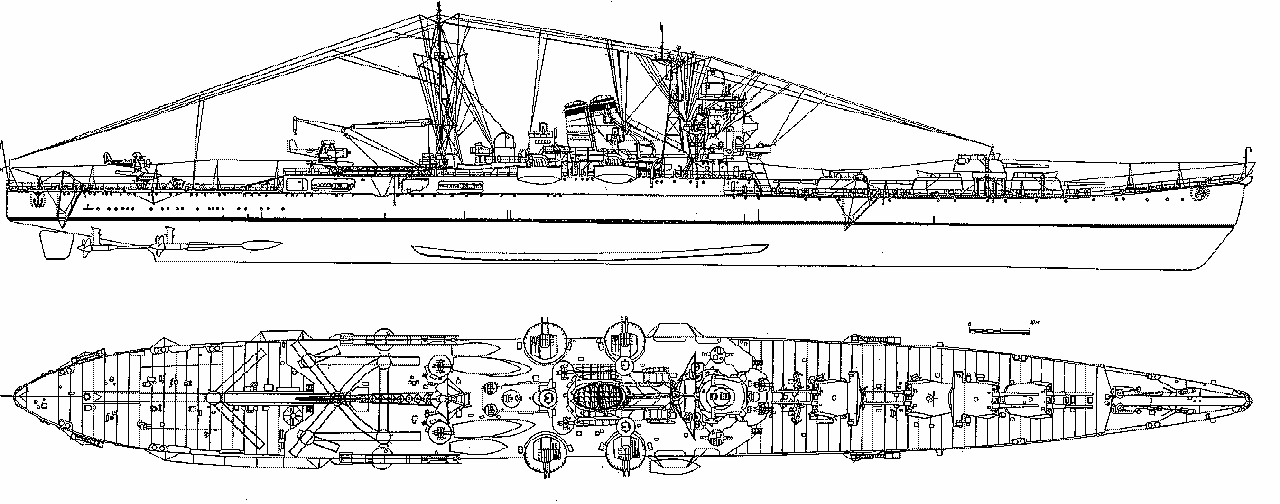

Line Drawings, plan/elevation.
Starboard View (large).
Starboard View, during refueling.

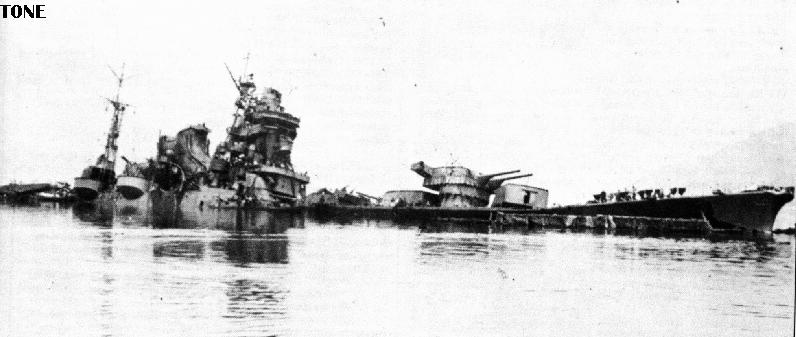

Post-war, on the bottom, at Kure.
