Inside the nose,  the rad is angled top back.

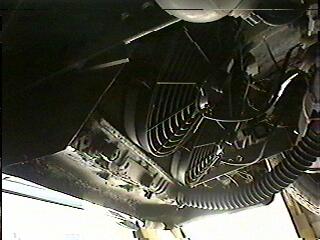

Bottom of the rad from the drivers side with two fans.

From the passenger side wheel well you can see the shroud built around the rad. The bar with the holes in it holds up the front bumper.

From under the rad looking back you can see the pipes and the supports. The large tubes at the top are the added ballast to counteract the weight of the heavy engine in the rear.

From the passenger side front you can see the bottom of the rad with the tube comming out. The counterweight mounts can be seen here as well.

Here's the filler cap for the rad at the highest point above the waterpump. The clear tube is for the overflow and reservoir.

A better picture of the rad and fans with all the counterweights removed
