Wing Span: 9.45m Hight : 2.90m Wing Area : 15 Square Meter All-Up Weight : 2,766Kg Empty Weight : 2,095Kg Engine : Nakajima Type2 Ha109 (1,450hp) X 1 Max Speed : 605Km/h Cluse Speed : 400Km/h Service Ceiling : 11,200m Range : 1,296Km Crew : 1 Armament : 7.7mm Machine Gun X 2, 12.7mm Ho103 Machine Gun X 2 Bomb : 30 - 100Kg X 2 or 250Kg X 1 |
|
 |

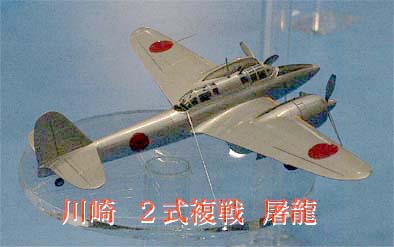

Wing Span: 15.02m Hight : 3.70m Wing Area : 32.0 Square Meter All-Up Weight : 5,500Kg Empty Weight : 4,000Kg Engine : Nakajima Type1 Ha102 1,050hp) X 2 Max Speed : 540Km/h Service Ceiling : 10,000m Range : 2,000Km Crew : 1 Armament : 12.7mm Ho103 Machine Gun X 2, 20mm Ho5 Machine Gun X 2 (Sloped Machine Guns) |
|
 |

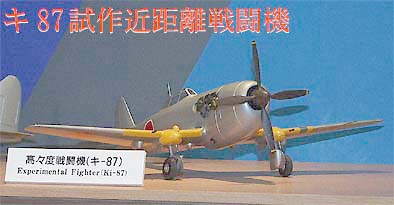

Wing Span: 13.42m Hight : 4.30m Wing Area : 26 Square Meter All-Up Weight : 5,632 - 6,100Kg Engine : Nakajima Ha44-12-Ru (Ha219-Ru) (2,450hp) X 1 Max Speed : 706Km/h Cluse Speed : 470Km/h Service Ceiling : 12,855m Crew : 1 Armament : 30mm Ho105 Machine Gun X 2, 20mm Ho5 Machine Gun X 2 250Kg Bomb X 1 |
|
 Shoji Hasegawa |
Wing Span: 15.00m Hight : 3.85m Wing Area : 37 Square Meter All-Up Weight : 8,800 - 9,400Kg Engine : Mitsubishi Ha211-Ru (2,200hp) X 2 Max Speed : 780Km/h Service Ceiling : 14,000m Crew : 1 Armament : 30mm Ho155 Machine Gun X 2, 37mm Ho204 Cannon X 1 50Kg Bomb X 2 |
|
|
This plan was the twin body, the twin boom-type. Two engines were arranged before and behind the central body. The first three wheel-type landing gear and pressure cockpit were adopted in Japan. But, as for this plan, there was impossibility in the arrangement position of the exhaust turbine. Then, this wasn't being considered about the pilot's escape. Japanese pilots weren't accustomed to three wheel-type landing gear. Therefore the plan 1 wasn't adopted. If the plan 1 is manufactured as an experiment, the vibration of the tail, cooling of the engine, and so on may have been problems. |
||
 Photo by Atsushi Koyanagi |
Wing Span: 11.26m Hight : 4.30m Wing Area : 24 Square Meter All-Up Weight : 4,500Kg Empty Weight : 3,500Kg Engine : Mitsubishi Ha211-Ru (2,200hp) X 1 Max Speed : 730Km/h Range : 1,000Km Service Ceiling : 12,000m Crew : 1 Armament : 20mm Ho5 Machine Gun X 2, 37mm Ho204 Cannon X 1 |
|
 |
Wing Span: 9.50m Hight : 2.70m Wing Area : 17.73 Square Meter All-Up Weight : 3,000Kg Empty Weight : 1,445Kg Main Engine : Mitsubishi KR10 (Tokuro-2) Rocket (1,500Kg) X 1 Max Speed : 800Km/h Cruise Speed : 347Km/h Duration of Flight : 2.5Minutes (700Km/h) Crew : 1 Armament : 30mm Ho155-II Machine Gun X 2 |
|
 Shoji Hasegawa |
Wing Span: 13.70m Hight : 4.05m Wing Area : 25.0 Square Meter All-Up Weight : 7,000Kg Empty Weight : 4,500Kg Engine : Ishikawajima Ne-130 Turbojet (908Kg) X 2 or Nakajima Ne-230 Turbojet (885Kg) X 2 Max Speed : 852Km/h (Ne-130) , 812Km/h (Ne-230) Range : 980Km Service Ceiling : 12,000m+ Crew : 1 Armament : 30mm Ho155-II Machine Gun X 2 or 20mm Ho5 Machine Gun X 2 (For Navy) 30mm Type5 Machine Gun X 2 or 20mm Type99 Machine Gun X 2 (For Army) 800Kg or 500Kg Bomb X 1 |
|
|
The fighter "Ki-201 Karyuu" was developed with Nakashima based on this data. This project was the joint development of the imperial army and navy. "Karyuu" expanded Me262. However, development progressed slowly. Pacific war was ended at the moment when a production drawing was completed. | ||
 |
Experimental Rocket Intercepter Length : 7.10m |
|
