DC-10

DC-10 Family

1	Introduction
2	Six Models
3	Advanced Propulsion
4	Interior
5	Flight Deck
6	Good Neighbor

1	Introduction
		A new category of airplane was added to the world's air transportation system when DC-10 entered scheduled airline service. It has been demonstrating its value to airlines and air travelers since then, winning world recognition for its reliability, comfort and efficiency in more than 25 million hours of revenue flight. In addition to the luxury and spaciousness inherent in its wide cabin, three-engine DC-10 incorporated improvements in propulsion, aerodynamics, structure, avionics, flight control systems and environmental compatibility that advanced industry standards. Multirange DC-10 was designed and built in Long Beach, California, by Douglas Aircraft Company, now the Long Beach Division of Boeing Commercial Airplanes. Production was started in January 1968 and first deliveries were in 1971. In a production run extending to 1989, 386 commercial DC-10s were delivered, plus 60 KC-10 tanker/cargo models built for the U.S. Air Force.
Top
2	Six Models

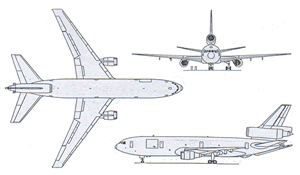

	The three-view drawing shows the Series 30 version of DC-10, which has proved to be most numerous variant among the 442 Dc-10s sold by early 1987. The Series 30CF and Series 40 were externally similiar.	Six commercial models of DC-10 were developed. All versions of the trijet transport accommodate from 250 passengers, in a typical mixed first class and coach arrangement, to 380 in all-economy seating. Series 10 model was designed for service on routes of up to 4,000 statute miles (6,436 km) and is powered by General Electric CF6-6 engines, each rated at 40,000 pounds (17,144 kg) takeoff thrust. The first flight was made on Aug. 29, 1970. Federal Aviation Administration (FAA) certification was received for airline service on July 29, 1971. First deliveries were made jointly to American Airlines and to United Airlines. Scheduled commercial flights began Aug. 5, 1971. Intercontinental range Series 40, powered by Pratt & Whitney JT9D turbofan engines, with nonstop range up to approximately 5,800 miles (9,322 km), was introduced to service in 1972. Series 30, an intercontinental model with a range of approximately 5,900 miles (9,493 km), also introduced in 1972, is equipped with General Electric CF6-50 fanjets. DC-10 Convertible Freighter, first delivered in 1973, can be arranged to carry all passengers or all cargo and is available in basic Series 10, Series 30 or Series 40. All versions have available cargo space of more than 16,000 cubic feet (453 cu m), as much capacity as four 40-foot (12.19-m) railroad freight cars, or up to 380 passengers. Series 15, launched in 1979, combines the basic smaller airframe of the Series 10 with a version of the more powerful engines used on the longer-range Series 30s. The combination gives the Series 15 outstanding performance with full loads from high-altitude airports in hot climates. DC-10 Series 30F, an all-freighter model, was ordered by Federal Express in May 1984. First delivery was made Jan. 24, 1986. This pure freighter version will carry palletized payloads of up to 175,000 pounds (79,380 kg) more than 3,800 miles (6,115 km). A military variant of DC-10 is the U.S. Air Force KC-10 tanker/cargo aircraft, adapted from Series 30CF for aerial refueling and cargo transport. Sixty were built and delivered to the Air Force.

Top
3	Advanced Propulsion
	DC-10's General Electric and Pratt & Whitney power plants represented significant advances in engine performance and technology over earlier jet engines. High-bypass-ratio turbofans yield lower specific fuel consumption, lower noise levels, smokeless exhaust, easier maintenance and design for high reliability. Thrust ratings range from 40,000 to 54,000 pounds (17,144 to 24,494 kg). Two engines are mounted beneath wings; third is above the aft fuselage at the base of vertical stabilizer.
Top
4	Interior
		Wide DC-10 cabin interior with its broad ceiling results in a roomy spaciousness. Two aisles run the length of the cabin. Aisles and seats are wider than those on earlier jet transports, providing a level of passenger comfort and convenience that set a new standard in air travel. Galleys can be installed on lower deck or in a section of aft cabin, both areas well separated from passengers. An advanced air conditioning and cabin pressurization system provides separate automatic temperature controls for three main cabin sections and for cockpit and lower galley, ensuring optimum comfort for all passengers, regardless of load density in different areas.
Top
5	Flight Deck
	Roomy flight deck of DC-10 has stations for a three-member crew, plus seating for two observers. Prime considerations in cockpit design were simplicity, efficiency and low crew workload. Large windshields provide exceptional visibility, particularly during approaches, landings and ground maneuvering. DC-10 is certified for automatic landing under Category IIIA weather conditions, allowing operation in near-zero visibility.
Top
6	Good Neighbor
	*McDonnell Douglas KC-10A Extender advanced tanker/cargo aircraft for US Air Force.*	The airplane was designed specifically to be a "good airport neighbor," operating from existing runways, taxiways and loading areas. Although each engine produces more than twice as much takeoff thrust as the most powerful engines on first-generation jetliners, DC-10 power plants are significantly quieter. DC-10 was the first commercial transport to be certified under the stringent FAA Stage 3 regulations governing sound levels for new aircraft, and it also complies with international noise standards.
