Carriages

The carriages for the Southern Aurora were all built of stainless steel by Commonwealth Engineering ( Comeng), to designs first developed in the late 1950s. A complete set of new  air-conditioned cars were to be built for the Brisbane Limited Express, including duplex sleeping cars.  In the event, these train sets were not built.



Instead, ten new single-level Sleeping Cars were built, and these were used with existing air-conditioned sitting cars to upgrade the Brisbane service from 1960.  These were the first air-conditioned sleeping cars for New South Wales.



The ten  75 feet long cars were of Roomette ( coded LAN) and Twinette ( coded NAM)  types, and the designs ( with just minor modifications) were built for the Southern Aurora.  The Roomette is a remarkable design, with very clever features to achieve the  capacity of 20.



The central feature of these Roomette  cars is the zig-zag corridor which gives enough space in each compartment for a full pull-down berth, which can be lowered with the passenger standing.  The  passenger can also use the toilet facilities with the berth lowered.



Previous roomette design, on the South Australian/ Victorian railways broad gauge Overland required the passenger to lower the berth from outside the cabin, shrouded in a zippered curtain. The New South Wales cars overcame this difficulty, despite a narrower loading gauge, by using the central zig-zag corridor layout.  An ingenious sliding door also kept out noise and light.  The last photo on this page shows floor plans of the carriages.



Both types of cars had exceptional lighting, with night, reading and main lights, and the cars won a design award for their lighting.  Stainless steel  was adopted for its weight-saving and strength: 5 tons was saved per car over conventional NSW sleeping cars, which had far fewer features than these fully air-conditioned and luxurious cars.



The fluted stainless steel sides gave an appearance remarkably similar to the Budd-built cars of the USA railways of the late 1940s and 1950s.  The reason is more than coincidence: the steel was rolled on the same equipment which Budd had used for the California Zephyr and other trains.  Comeng had bought the equipment from Budd, and so all the NSW stainless steel stock has this family resemblance.



The basic features and design of the cars was repeated in the 1960s in the new trains being built for the Sydney-Perth standard gauge train, later named the Indian Pacific. Some IP cars were used on the Aurora after the 1969 Violet Town collision, as seen in the first photo below.

As a result of the Violet Town collision, new cars for the Sydney-Perth Indian Pacific were used as replacements for the seven destroyed Aurora cars, while new cars were constructed. ipcars.jpg (89855 bytes)
The Aurora is on the right at Platform 1 of Sydney station, with Motorail vehicles in the lead.

The 8.10 Spirit Of Progress is on the left.

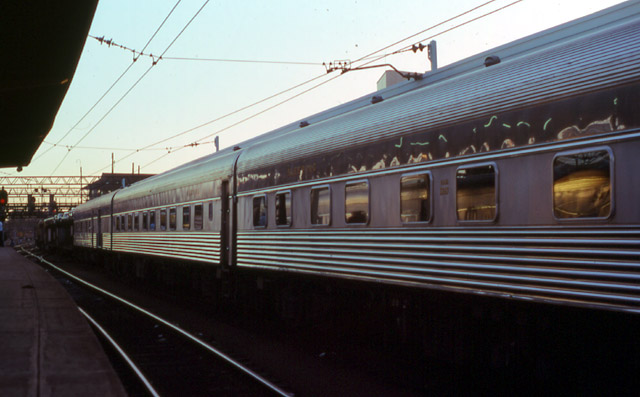

A Summer departure in Daylight Saving Time. syd1.jpg (77484 bytes)

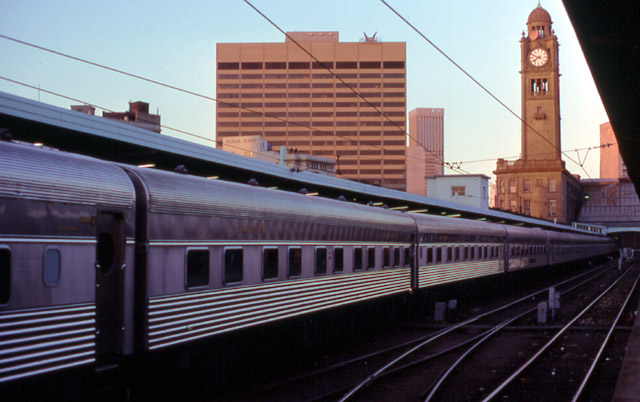

The Sydney Station Clock Tower looms over the train. syd2.jpg (86070 bytes)

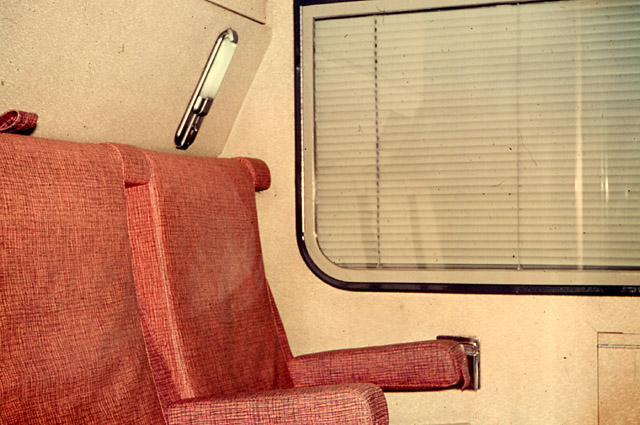

Original Interior of Twinette compartment in the NAM-type cars.  Compartments were finished in varying  pastel shades. twin.jpg (98061 bytes)

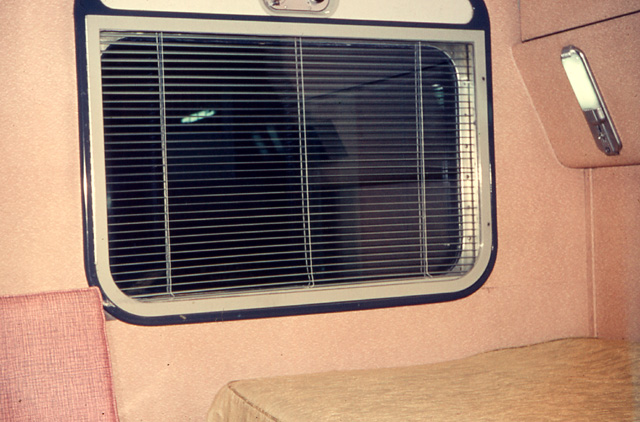

Original interior of De Luxe compartment in the DAM-type car. deluxe.jpg (123852 bytes)

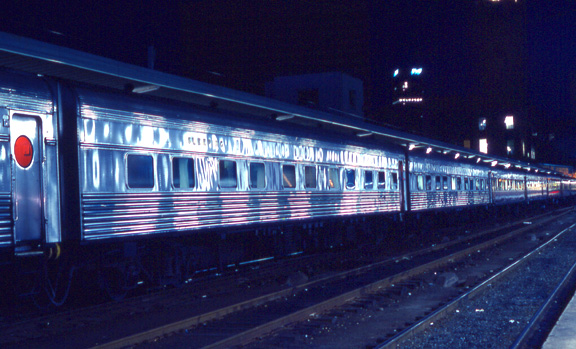

Waiting on Platform One for the 8 pm departure in winter. night.jpg (115184 bytes)
Interior of the De Luxe suite in the DAM -type car, viewed from the platform. dam1pg.jpg (82167 bytes)
A " Railway Transportation " Magazine drawing of the principal cars used on the Southern Aurora diags.jpg (249853 bytes)



Carriage Fact File
Length of train ( 14 cars)

 1076 feet

Total weight of train: tare 580 tons
Loaded weight 630 tons
Carriage length over gangways 77 ft 3 in
Body length 75 ft
Width 9 ft 9 in
Height 13ft 3 1/2 in
Passenger capacity

198

Number of passenger toilets 154
Showers 59
Dining Car seats 48
Lounge Car seats 40
Crew Basic crew: 21( Driver, Observer, Guard, Head Conductor, 9 Car Conductors, Chef, Assistant Chef, Kitchen Hand, Chief Steward, Bar Steward, 2 stewards/ waiters, AC Technician



For more Carriage Interiors see Dining Car and Journeys pages
