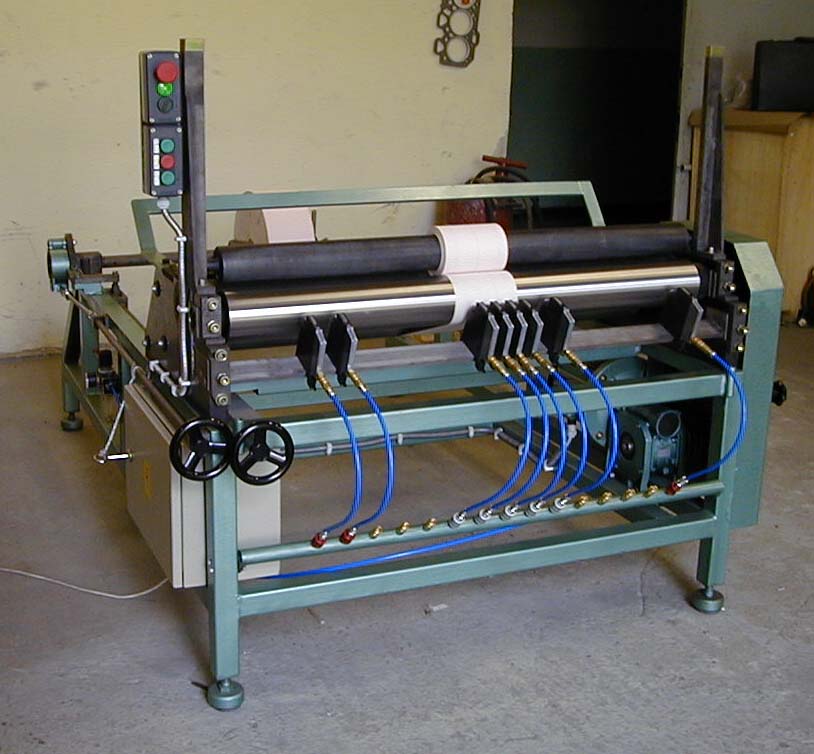

Longitudinal tape cutting machine


Technical Parameters:


  1. Maximum width of the roll (mm) - 1000
  2. Maximum diameter of the roll (mm) - 800
  3. Minimum width of the cut-out tape (mm) - 20
  4. Performance (m/min) - 12
  5. Installed power (kW) - 1.1
  6. Power supply (V;Hz) - 380;50
  7. Overall dimension
    length (mm) - 2100
    width (mm) - 1300
    height (mm) - 1500

This machine is designed for longitudinal tape-cutting of filter paper rolls with fixed dimesions. It is used in serial production of fuel, oil and air filters.
