SOHC |
DOHC |
DOHC TURBO |
Type |
3.0L V-6, 60 degrees, Front TRansverse, Liquid cooled |
3.0L V-6, 60 degrees, Front TRansverse, Liquid cooled |
3.0L V-6, 60 degrees, Front TRansverse, Twin intercooled turbochargers |
Fuel System |
ElecTRonically conTRolled multi-point fuel injection |
ElecTRonically conTRolled multi-point fuel injection |
ElecTRonically conTRolled multi-point fuel injection |
Valve System |
12 valves, Roller followers, Hydraulic lifters |
24 valves, Roller followers, Hydraulic lifters |
24 valves, Roller followers, Hydraulic lifters |
ConsTRuction |
Cast iron block, Aluminum alloy heads |
Cast iron block, Aluminum alloy heads, Four-bolt main |
Cast iron block, Aluminum alloy heads, Four-bolt main |
Firing Order |
1-2-3-4-5-6 |
1-2-3-4-5-6 |
1-2-3-4-5-6 |
Piston Displacement |
181.4 cu. in. / 2972 cu. cm |
181.4 cu. in. / 2972 cu. cm |
181.4 cu. in. / 2972 cu. cm |
Bore |
3.59 in / 91.1 mm |
3.59 in / 91.1 mm |
3.59 in / 91.1 mm |
STRoke |
2.99 in / 76.0 mm |
2.99 in / 76.0 mm |
2.99 in / 76.0 mm |
Compression Ratio |
8.9:1 |
10.0:1 |
8.0:1 |
Horsepower 91-93 |
164 bhp @ 5500 rpm |
222 bhp @ 6000rpm |
300 bhp @ 6000pm |
Torque 91-93 |
185 lb-ft @ 4000 rpm |
205 lb-ft @ 4500 rpm |
307 lb-ft @ 2500 rpm |
Horsepower 94+ |
161 bhp @ 5500 rpm |
222 bhp @ 6000rpm |
320 bhp @ 6000pm |
Torque 94+ |
185 lb-ft @ 4000 rpm |
205 lb-ft @ 4500 rpm |
315 lb-ft @ 2500 rpm |
|
SOHC |
DOHC |
DOHC TURBO |
Curb Weight (man/auto) |
3131 / 3219 lbs |
3263 / 3351 lbs |
3737 / N/A lbs |
Fuel Capacity |
19.8 gallons |
19.8 gallons |
19.8 gallons |
EPA Est. MPG: City/Highway; man/auto |
19 / 24 ; 18 / 23 |
19 / 25 ; 18 / 24 |
18 / 24 ; na / na |
|
SOHC |
DOHC |
DOHC TURBO |

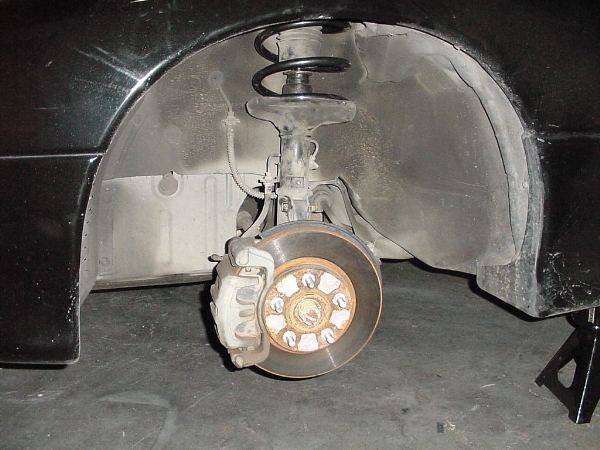

Front Suspension |
Independent MacPherson sTRuts with coil springs |
Independent MacPherson sTRuts with coil springs |
Independent MacPherson sTRuts with coil springs |
Rear Suspension |
Independent multi-link with coil springs |
Independent multi-link with coil springs |
Independent double wishbone with toe conTRol links and coil springs |
Stabilizer Bars |
Front |
Front and Rear |
Front and Rear |
Steering Type |
Power-assist rack-and-pinion |
Power-assist rack-and-pinion |
Power-assist rack-and-pinion with same-phase 4-wheel steering |
Turning Circle |
37.4 feet |
37.4 feet |
38.7 feet |
|
SOHC |
DOHC |
DOHC TURBO |
Manual TRansmission |
5-speed with overdrive |
5-speed with overdrive |
6-speed with overdrive |
Automatic TRansmission |
4-speed with overdrive, ECM/TCM engine TRansmission conTRol system, Power/Economy modes and overdrive lockout (optional) |
4-speed with overdrive, ECM/TCM engine TRansmission conTRol system, Power/Economy modes and overdrive lockout (optional) |
N/A |
4 Wheel Drive |
N/A |
N/A |
Full-time All-Wheel Drive (AWD) with viscous coupling, center differential and limited-slip rear differential |
|
SOHC |
DOHC |
DOHC TURBO |
Brakes |
Power-assisted 4-wheel ventilated disc |
Power-assisted 4-wheel ventilated disc |
Power-assisted 4-wheel ventilated disc with 4-piston front calipers |
Wheel Size |
8JJ x 16 |
8.5JJ x17 |
8.5JJ x18 |
Wheel Type |
Aluminum alloy |
Chrome-plated alloy |
Chrome-plated alloy |

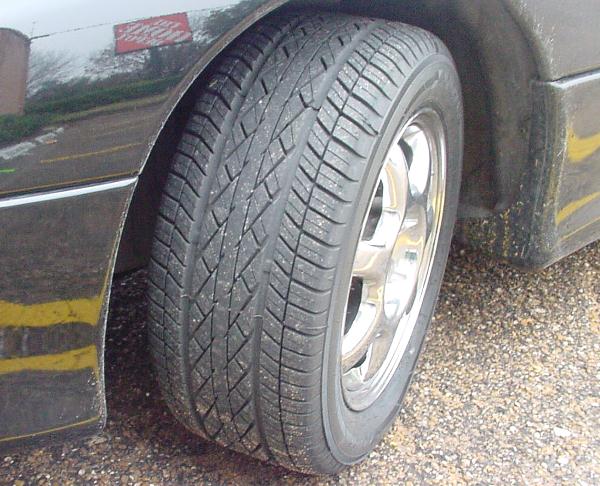

Tires Size |
225/55VR16 |
245/45ZR17 |
245/40ZR18 |
Anti-Lock Brakes |
N/A |
Optional |
Standard |
