RC Toy Car Controlled By A PC

The circuit is based around the PIC16F84 which is loaded with my version of rs232.hex. The PIC simply outputs the binary asynchronous value comming from the PC’s serial port. The program on the PC simply sends a series of values (corresponding to F,B, L or R on the RC transmitter) or a combination of such. The circuit is connected to the rs232 port on the PC and to the RC box. The RC box is hacked on its switches so the computer shots commands to it.

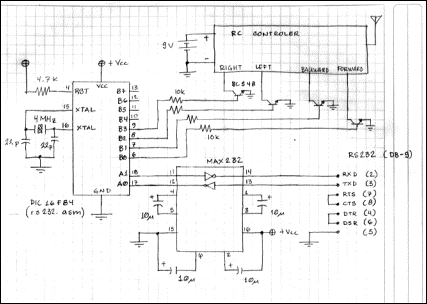

Circuit Schematics.

This is the rs232.asm listing to compile and load into the PIC16F84

;Programa para interface RS232 <-> Paralelo 8 bits

;

processor 16f84

include <p16f84.inc>

__config _XT_OSC & _WDT_OFF & _PWRTE_ON

;Variables usadas

XMIT_BYTE equ H'0C' ;Contiene el byte a transmitir

RCV_BYTE equ H'0D' ;Contiene el byte recivido

BIT_CNTR equ H'0E' ;Cuenta los bits para RS232

DELAY_CNTR equ H'0F' ;Cuenta el delay

;Constantes

RX equ H'00' ;Bit 0 del PORTA (entrada serial)

TX equ H'01' ;Bit 1 del PORTA (salida serial)

;Inicializacion

org 0 ;Inicia en direccion 0

bsf STATUS,RP0 ;Selecciona regs. Banco 1

movlw B'11111101' ;Configura puerto A

movwf TRISA

movlw B'00000000' ;Configura puerto B

movwf TRISB

bcf STATUS,RP0 ;Selecciona regs. Banco 0

movlw B'00000000' ;Salidas apagadas

movwf PORTB

bsf PORTA,TX ;Pon TX en HIGH, estado de espera

MAIN:

movlw H'0F' ;pon el valor 15 en W

call XMIT_RS232 ;Mandalo serialmente

call RCV_RS232 ;Recive el valor seriado

movwf PORTB ;ponlo en las salidas (PUERTO B)

goto MAIN ;recicla

;************************* SUBRUTINAS ***********************************

XMIT_RS232:

movwf XMIT_BYTE ;Mueve el contenido de W a XMIT_BYTE

movlw H'08'

movwf BIT_CNTR ;Pon 8 en el contador de BIT_CNTR

bcf PORTA,TX ;Pon TX en LOW, Start Bit

call BIT_DELAY ;Haz un retrazo

SER_LOOP:

rrf XMIT_BYTE,F ;Rota XMIT_BYTE y guardalo en el mismo

btfss STATUS,C ;Si el bit es 0?

bcf PORTA,TX ;pon TX en LOW

btfsc STATUS,C ;Si el bit es 1?

bsf PORTA,TX ;pon TX en HIGH

call BIT_DELAY ;Haz un retrazo

decfsz BIT_CNTR,F ;Se han enviado ya 8 bits?

goto SER_LOOP ;No, recicla

bsf PORTA,TX ;Si, pon TX en HIGH, en espera

call BIT_DELAY ;Haz un retrazo

return

RCV_RS232:

btfsc PORTA,RX ;Espera por el Start Bit

goto RCV_RS232 ;Mientras, recicla

call START_DELAY ;Haz un medio retrazo

btfsc PORTA,RX ;Verifica que aun se esta en Start Bit

goto RCV_RS232 ;Si, recicla

movlw H'08' ;Pon 8 en el BIT_CNTR

movwf BIT_CNTR

clrf RCV_BYTE ;Limpia el registro de recepcion RCV_BYTE

NEXT_RCVBIT:

call BIT_DELAY ;Haz un retrazo

btfss PORTA,RX ;Es RX HIGH?

bcf STATUS,C ;No, pon el bit en 0 (Carry)

btfsc PORTA,RX ;Es RX LOW?

bsf STATUS,C ;No, pon el bit en 1 (Carry)

rrf RCV_BYTE,F ;Rota RCV_BYTE y acumula el bit ahi mismo

decfsz BIT_CNTR,F ;Se han leido ya los 8 bits?

goto NEXT_RCVBIT ;No, recicla

call BIT_DELAY ;Haz un retrazo

movf RCV_BYTE,W ;Guarda RCV_BYTE en W

return

START_DELAY:

movlw H'0C'

movwf DELAY_CNTR

START_WAIT:

nop

decfsz DELAY_CNTR,F

goto START_WAIT

return

BIT_DELAY:

movlw H'18'

movwf DELAY_CNTR

BIT_WAIT:

nop

decfsz DELAY_CNTR,F

goto BIT_WAIT

return

end

These are a few pictures of the setup:
