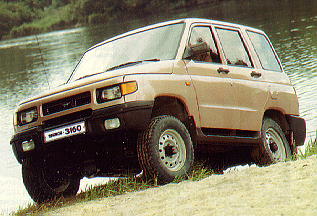

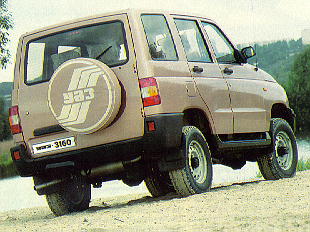

Development of UAZ-469 - off-roader UAZ-3160. It's 7 seats 5

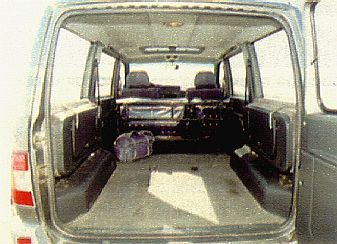

doors frame-based station wagon with luggage compartment of LxWxH:
3'3.4"x3'7.3"x3'6.9", loading height: 30". More comfortable model. It

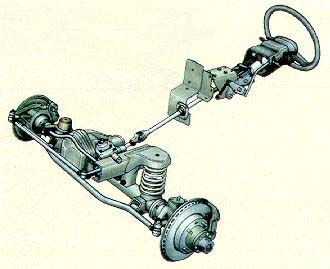

has coil spring front suspension and stabilizer, leaf spring rear, power steering. Motor:
- for base model <UAZ-31601 is
UMZ-421 type: gasoline (carburetor), ohv, 4 cylinders in line, displacement 2,886 cc (bore
3.94", stroke 3.62"), power: 100 hp top speed 84 mph, fuel economy: 16.8 mpg.
Price $7,500;
- for UAZ-31602 is ZMZ-4092.10
type: gasoline (fuel injection) straight 4, 2.7 liter, ohc 16 valve, 137 hp, top speed 93
mph, price $12,000 (looks like the best motor, judging by words of UAZ test-drivers);
- for UAZ-31603 with Peugeot 3,000
cc diesel;
- for UAZ-31604 with VM-425
Italian diesel: 2,490 cc, power: 105 hp, top speed 84 mph, price $12,400;
- for UAZ-31605 model: UMZ-4213.10 type, gasoline (Bosch injection), ohv, 4 cylinders in line,
displacement 2,886 cc (bore 3.94", stroke 3.62"), compression ratio 8.2:1. Power
105 hp, torque 156 ft.-lb. @ 2,800 rpm. Top speed 87 mph, price $9,000.
Gearbox: 5x2 step, 2/4 WD shifter, on/off front axle, without transaxle differential. Brakes: front - ventilated disks, rear - drums, with hydraulic control. Measures: lengt 13'11", wheel base 7'10.5". Maneuverability: turning circle 41'6", ground clearance 8.7". Curb weight 4,255 lbs (for base model). Tyres 225/80R16 or 225/75R16. Coefficient of drag (Cx) = 0.49.

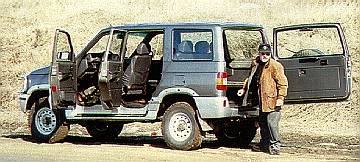

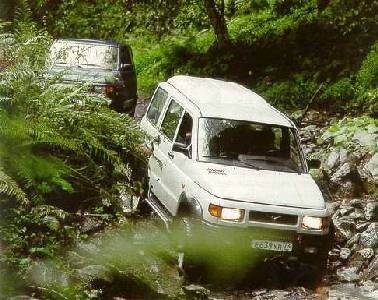

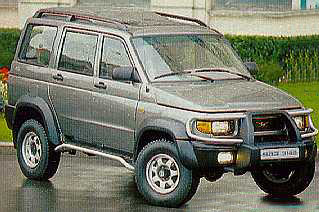

There is long wheel base modification - UAZ-3162 "Simbir" (s. ending of 1998). It differs from 3160 by capacity (9 seats), length (15'7.2"), wheel base (9'0.5"), turn radius (23'7.5"), payload (1,764 lbs) and curb weight (4,431 lbs). Top speed 94 mph. UAZ-31622 (top speed 93 mph, price $12,000) is powered by ZMZ-4092.10 engine, UAZ-31622-300 is powered by new UMZ-049B type engine (gasoline (multi-point fuel injection), straight 4, 2.9 liter, modified rear suspension, stabilizer. UAZ-31625 (top speed 87 mph, price $10,800) is powered by UMZ-4213.10 engine. Production program in year 2000: 200 units.
 |
 |
 |
 |
 |
