Arch heights (rises) and semi-axis b remain constant.
Values of y and values of parameter t at corresponding
Framing Points are equal.

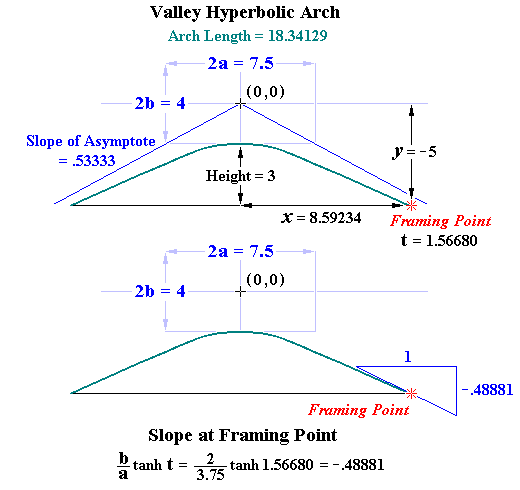

Values of semi-axis a and distances to Framing Points
along the x-axis shear according to the formula:

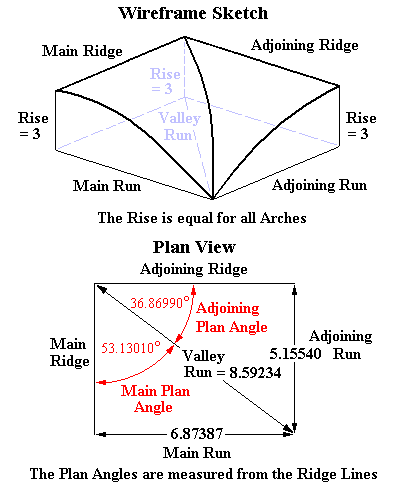

Valley Run = Common Run ÷ sin Plan Angle

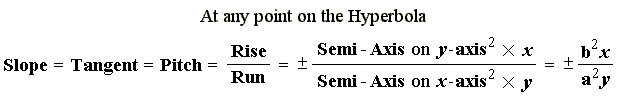

Slopes of asymptotes and slopes at corresponding
Framing Points are governed by the formula:
Valley Pitch = Common Pitch × sin Plan Angle
|
|
