Charger Wiring Diagrams

Updated December 2002. These pages are formatted to print full size (8 1/2" X 11"). Let me know if they help!

1966 Wiring Diagrams


Source: "1966 Dodge Service Manual - Charger Supplement" - November 15, 1965

  • Page 09 - Rotating Headlight Circuit ***PLEASE NOTE THE FOLLOWING! ***
    This is the "INCORRECT" Original Chrysler Corporation diagram.
    For more information, please go to the Hidden Headlight pages.


  • Page 09 - "Corrected Version" - Rotating Headlight Circuit.
  • Page 13 - Engine Compartment Wiring Diagram

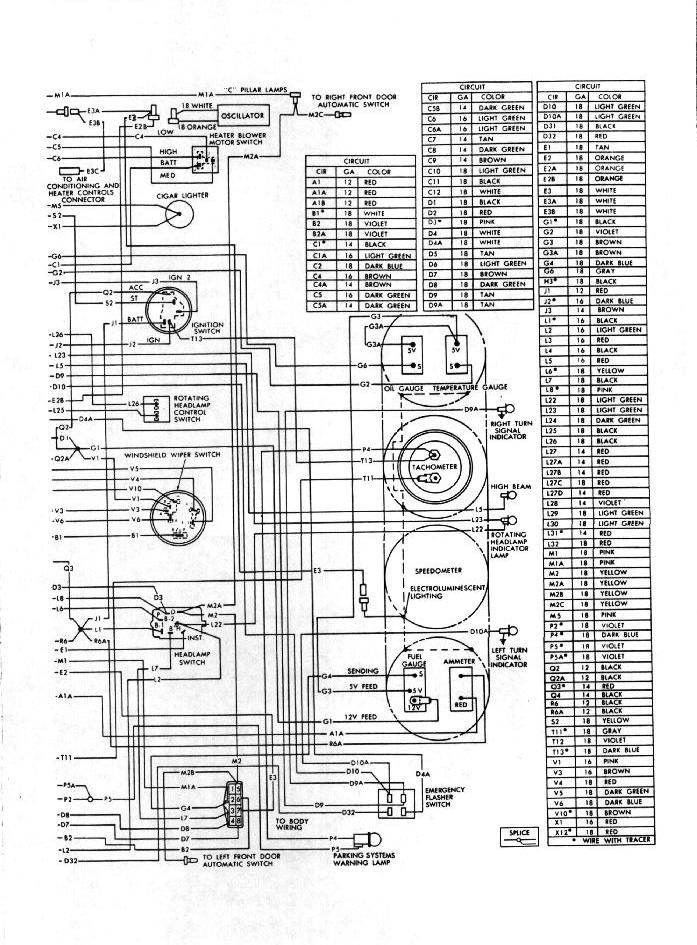

  • Page 14 - Instrument Panel Wiring - Page 1 of 2
  • Page 14 - Instrument Panel Wiring - Page 2 of 2
  • Page 16 - Body Wiring Diagram

  • Complete Charger Supplement Manual

    Source: "Chiltons Auto Repair Manual" - 1970

  • Body and Instrument panel wiring diagram - 1966
  • Engine compartment wiring diagram - 1966
  • Headlamp motor and other circuits wiring diagram - 1966 (Headlight circuit is incorrect! See above for correct version)

    Source: "1966 Dodge Charger Wiring Manual" - Aftermarket

  • Electric Door Locks Wiring Diagram

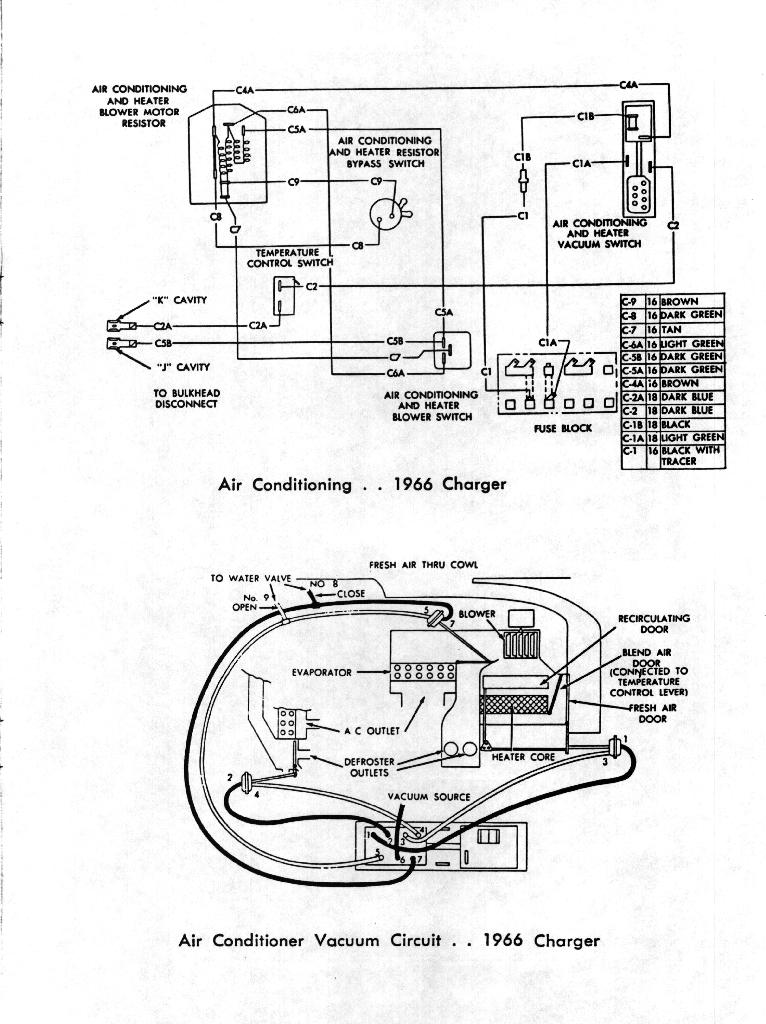

  • Air Conditioning Electric and Vacuum Circuits

    1967 Wiring Diagrams

    Source: "1967 Dodge Service Manual"

  • Page 8-121 - Engine compartment wiring diagram - except Hemi - 1967

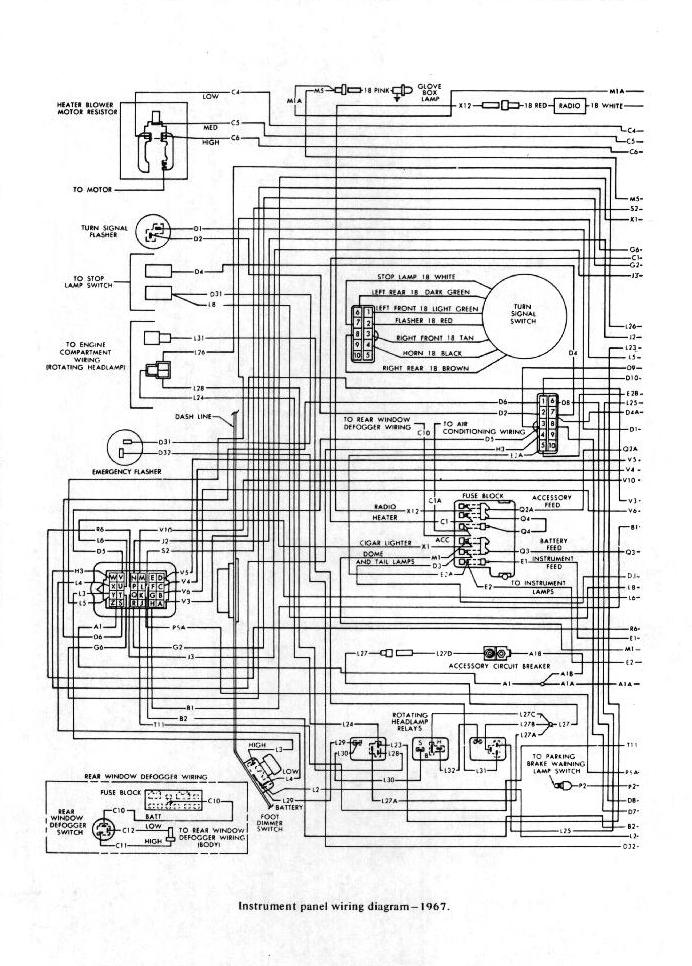

  • Page 8-122 - Instrument panel Wiring Diagram - page 1 of 2
  • Page 8-123 - Instrument panel Wiring Diagram - page 2 of 2
  • Page 8-124 - Body wiring diagram - 1967

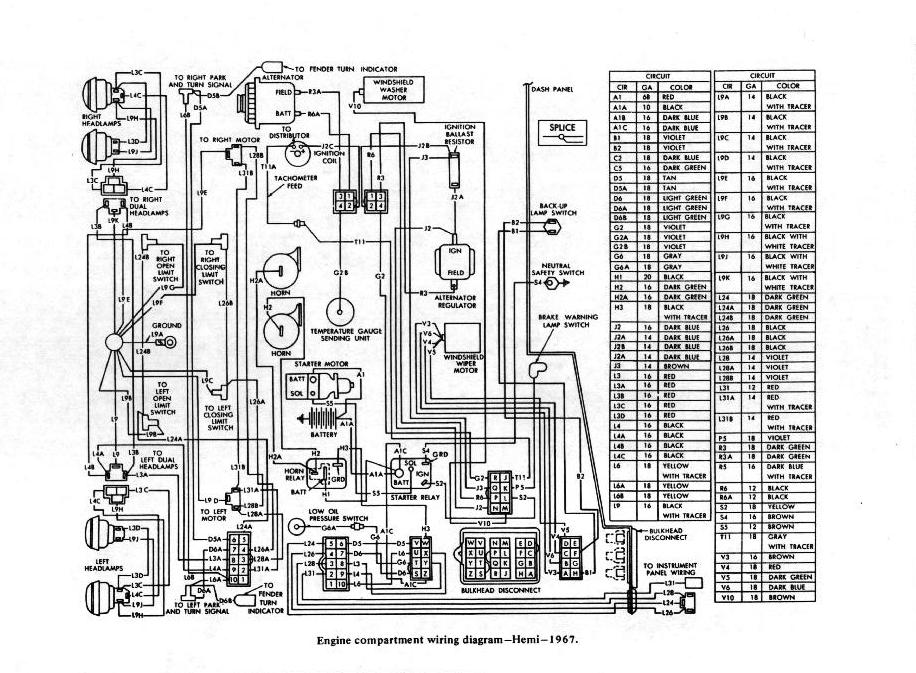

  • Page 8-125 - Engine compartment wiring diagram - Hemi - 1967
