Reels Maintenance - Do It Yourself

In this page, I shall cover some of the reels we commonly used in today's Saltwater Fishing. Below are some reels which I've personally used and maintained. OverHeads or Baitcast 1. Shimano Tiagra 50A 2. Penn Senator 115L 3. Tiburon SST 16 4..Tiburon SST 12 5.. Shimano Ocea Jigger 4000P 6. Shimano Ocea Jigger 2500P 7. Duel Speedy 12 Spinning or Egg Beaters 1. Shimano Stella 20000PG 2. Daiwa Freams 4500J 3. Daiwa Freams Kix 2000

TIBURON SST 16

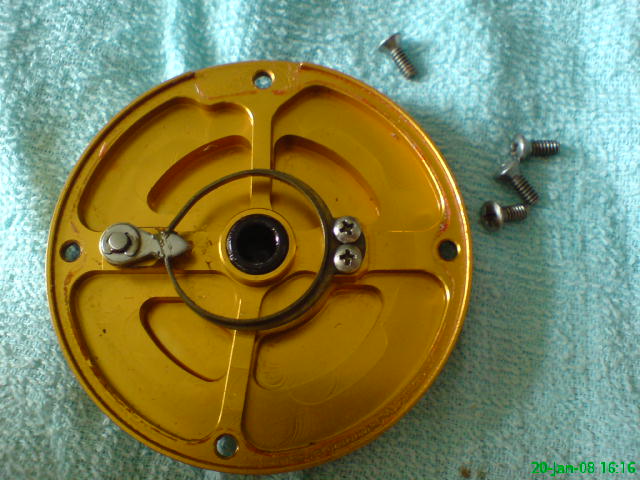

2. Remove the 4 counter-sunk screws on the LEFT side plate

1. Before Dismantle

4. Remove the pinion Gear, drag cover retainer and drag plate

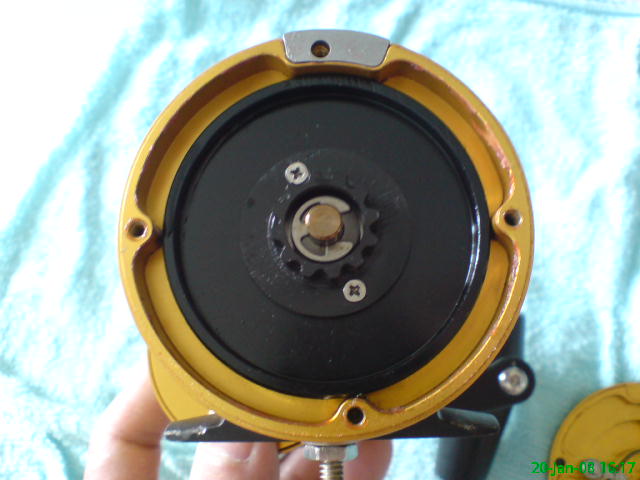

3. Remove the 2 screws and inspect the clicker gear and spool bearings

5. Remove the old grerase from the pinion gear

6. This is the right side plate and housing assembly

7. Drag retainer and drag plate before dismantle

8. Drag cover, drag retainer, drag plate and spring after dismantle

10. This is the clicker gear on the left spool

9. This is the carbon fibre drag of the SST (Can be used WET or DRY)

11. Check both spool bearings for smoothness and drive shaft for any damaged

12. Remove the 4 set screws from the right side plate to remove the spool housing

13.Right plate, drive gear assembly

14.Remove the handle locking screw and the handle mounting screw

15.These are the components after handle removal

16.Remove the whole drive gear unit and replace the old grease with new grease. Check all gear teeth for any damages

18.The remaining of the right side plate. Check the remaining 2 bearings on the handle area.

17.Remove the remaining 3 screws from the right side plate to remove the drag lever and drag cam

19. These are the 7 pcs of washers after removal of handle. Note : Please stack them back the correct way

20. This is the whole drive gear system.
