USS ATLANTA (CL-51)
SHIPS DATA
Name: Atlanta
Hull Number: CL-51
Displacement: 6,000 tons (standard), 8,500 (full load)
Dimensions:
Length Overall: 543'
Beam (wl): 54'
Maximum Draft: 20'
Protection:
Main Side Belt: 1.1"-3.5"
Deck Armor: 2" (maximum)
Turrets: 1.2"
Armament:
16x5"/38cal (dual mountings)
12x1.1"/75cal (quadruple mountings)
14x20mm Oerlikons (single mountings)
8x21" Torpedo Tubes (quadruple mountings)
Machinery:
2 geared steam turbines, 9 General Electric boilers, 75,000 SHP
Speed: 33 knots
Compliment:
Standard: 600
Wartime: 800
PHOTO GALLERY

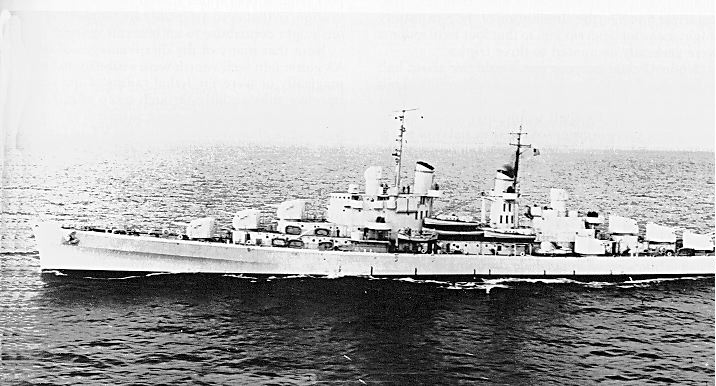

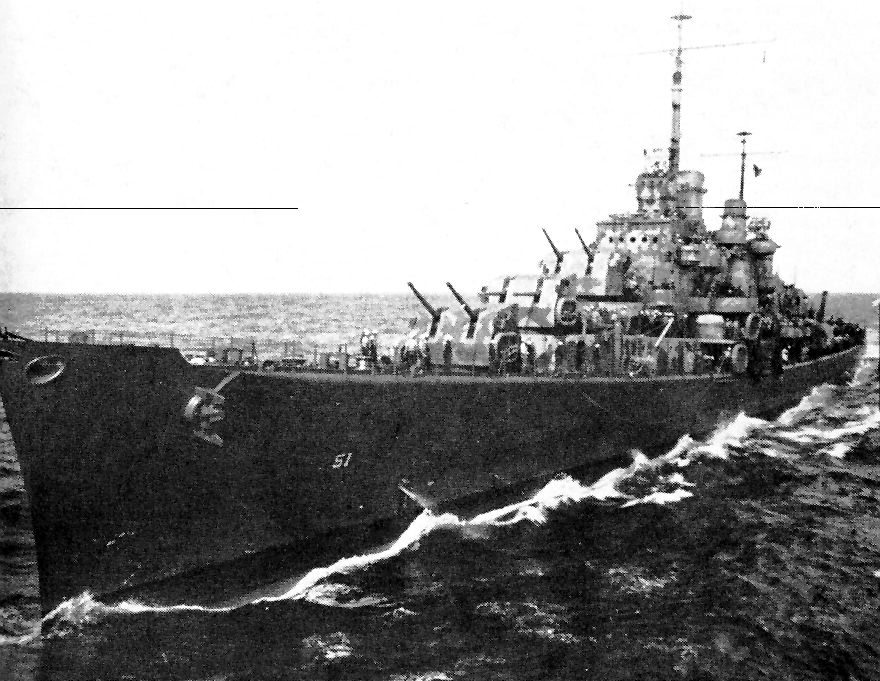

Close-up, port bow.

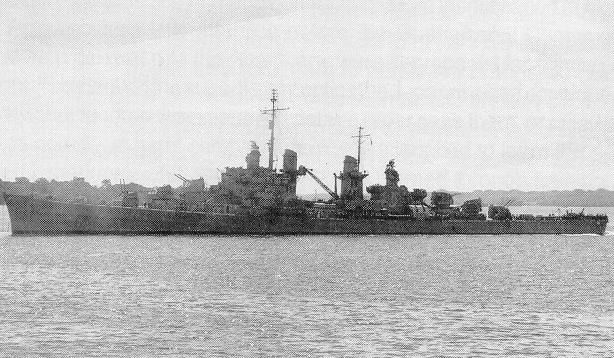

Port view.

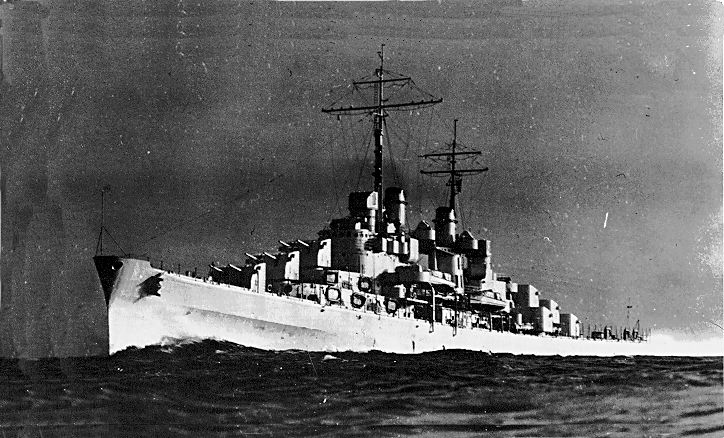

Port view, during trials.
