Terminal Block Connector.

Terminal Block / Strip is a connector, which can receive not Prepared or Stripped
or Fork/Ring Terminated Wire on Connection Side,
and it has a Solder Tails/Legs/Leads on Termination Side,
or Stripped Wire on both Sides.

Main applications: Power Supply and Distribution, Ground Supply and Distribution to PCB or Panel.
Working Current from 10A up to 40A. It define the Wire Gage (Area of cutted Wire).
Working Voltage define the Pitch (Dimension between near Contacts).

There were four Groups of Terminal Blocks: Barrier, European, Rail and Independed.

Barrier (American) Style ("Chocolate")

Mountig Technology: Panel Mount(by screws), PCB Mount with Solder tails.

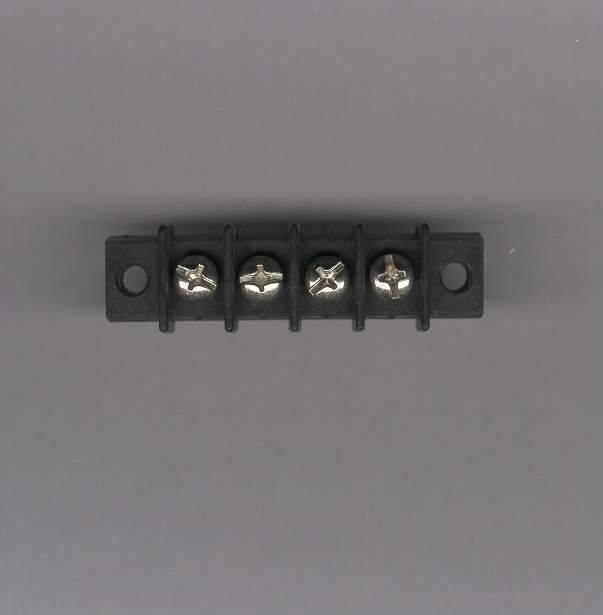

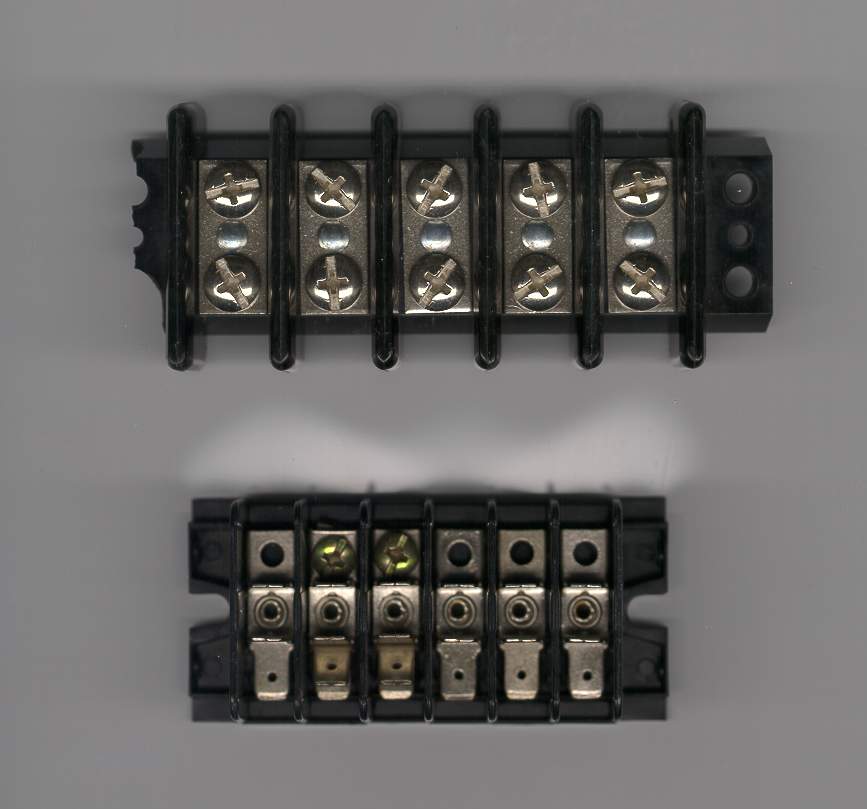

1 Row Body.	1 Row RA-Angled.	1 Row 3 Barriers.	2 Rows Body.



European Style

Mount on PCB with 1 or 2 Solder Tails/Legs/Leads per Contact (PCB Mount) and/or Screws. Mount on Panel by Screws or Metal/Plastic Latches to Panel Cutout. Free Hang Mounting

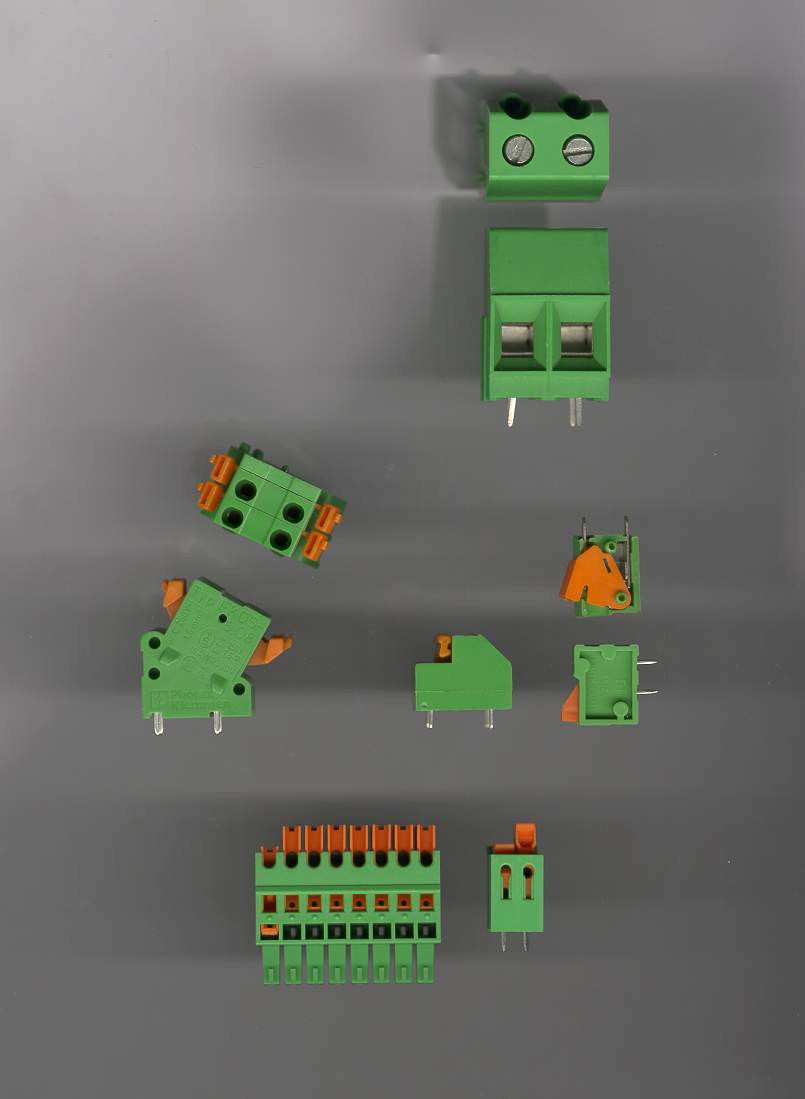

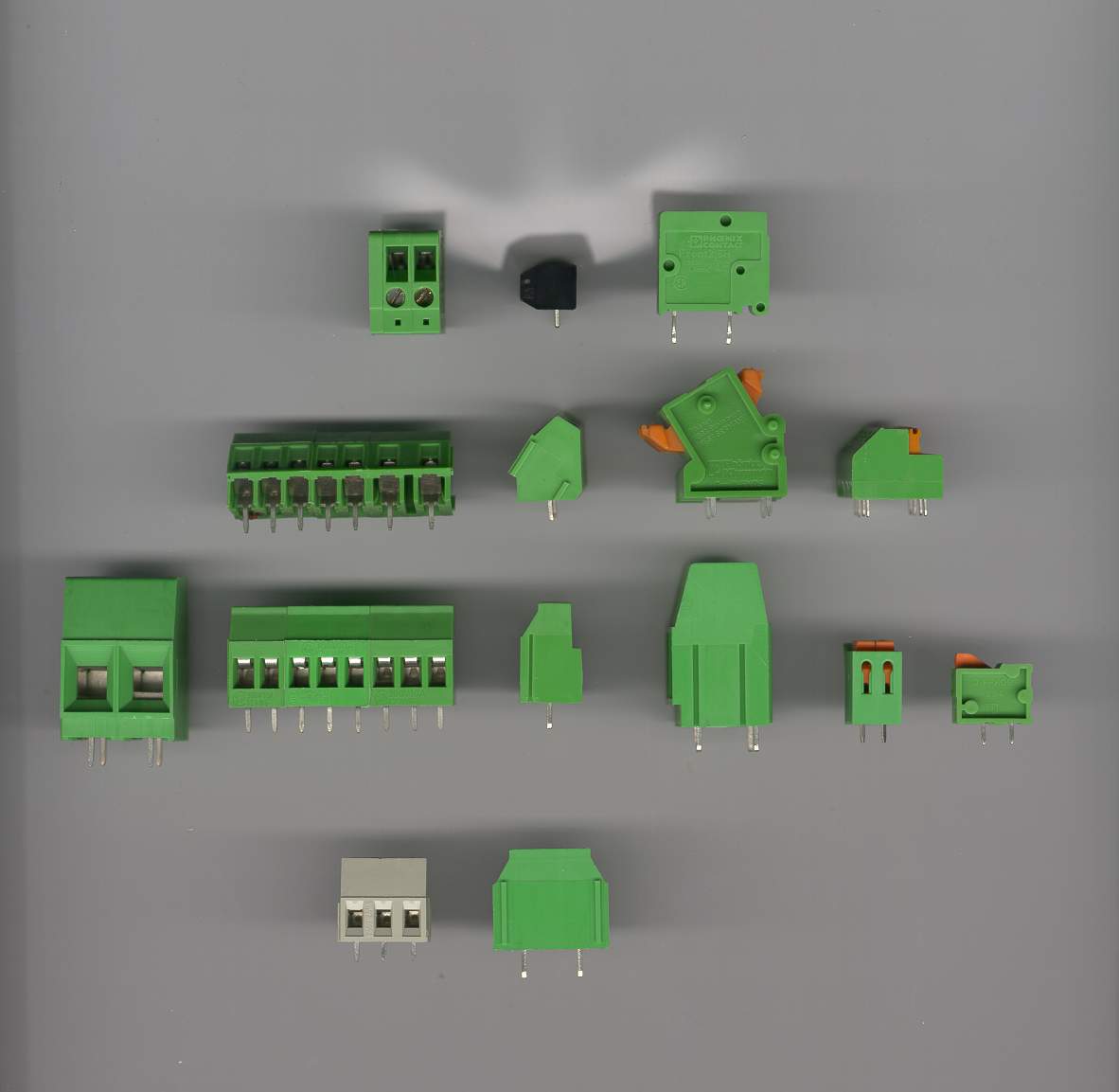

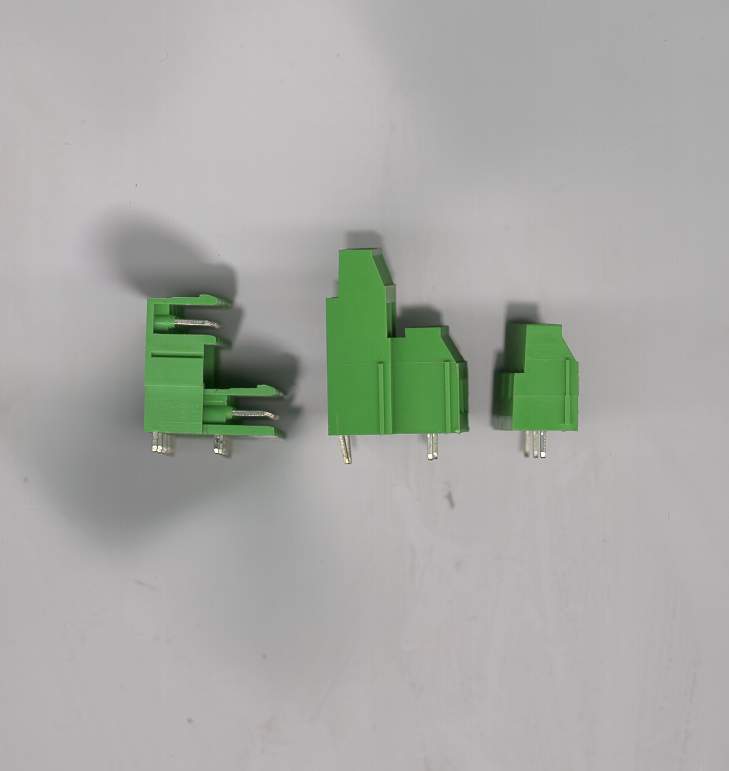

Wire Direction: STR / 45 DEG / RA / 2xRA(Wire-to-wire)	Wire hold by: Lever / Knob / Screw	Body variants: 1 Floor / 2 / 3 - All RA.

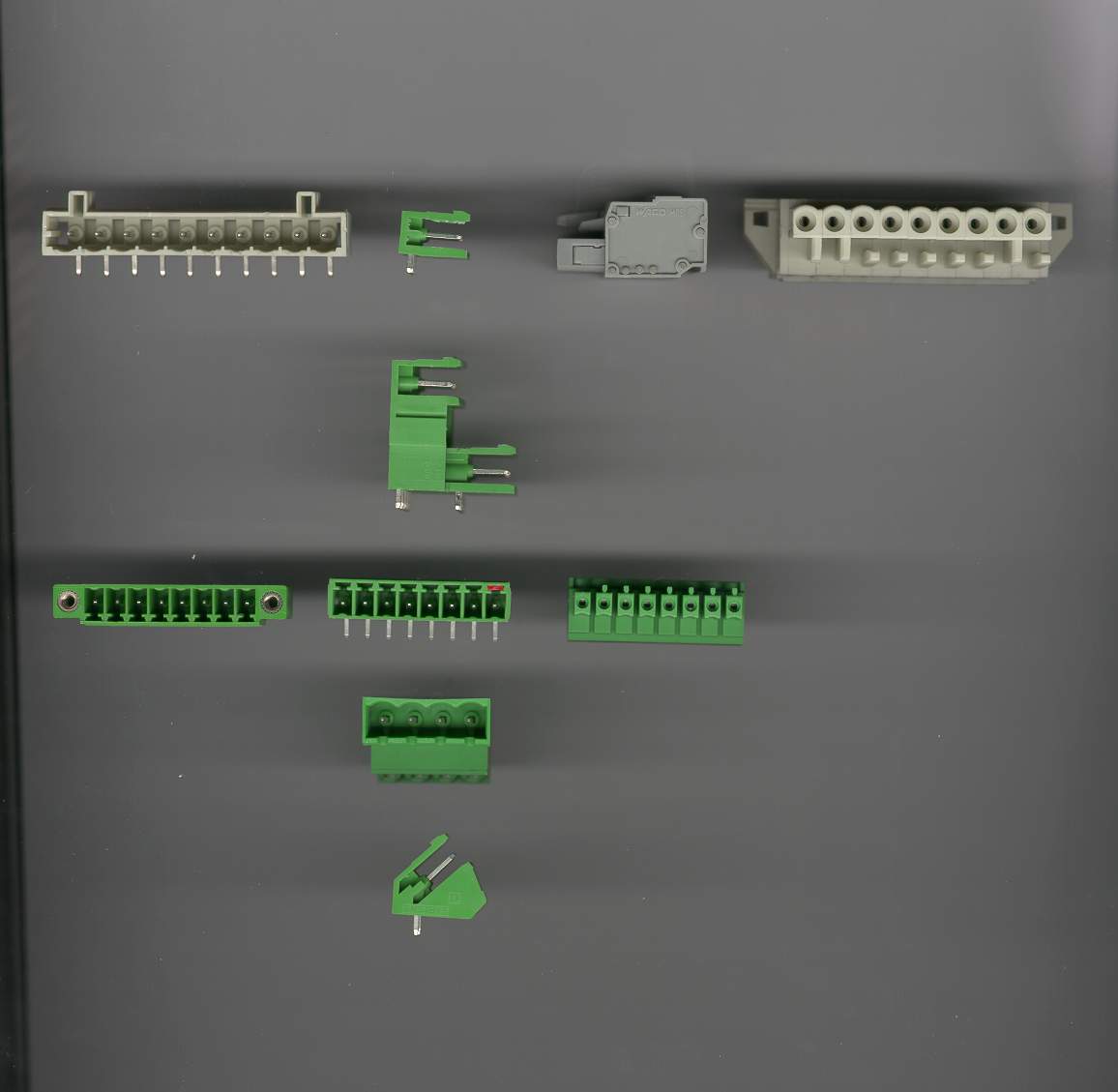

Connector style Mating Terminal Block. Pitch .200"(5.08mm): Mating as Connector, Wire hold as Term.Block




Independed Terminal, PCB Mount, Solder or Press

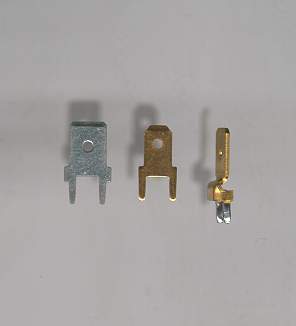

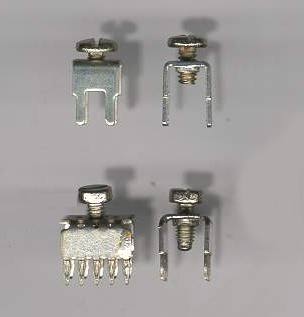

Screw Hold (STR PCB) for Mating with Ring or Fork Terminal on Wire Side.		Quick Disconnect (Blade) Terminal (STR/45/RA PCB).

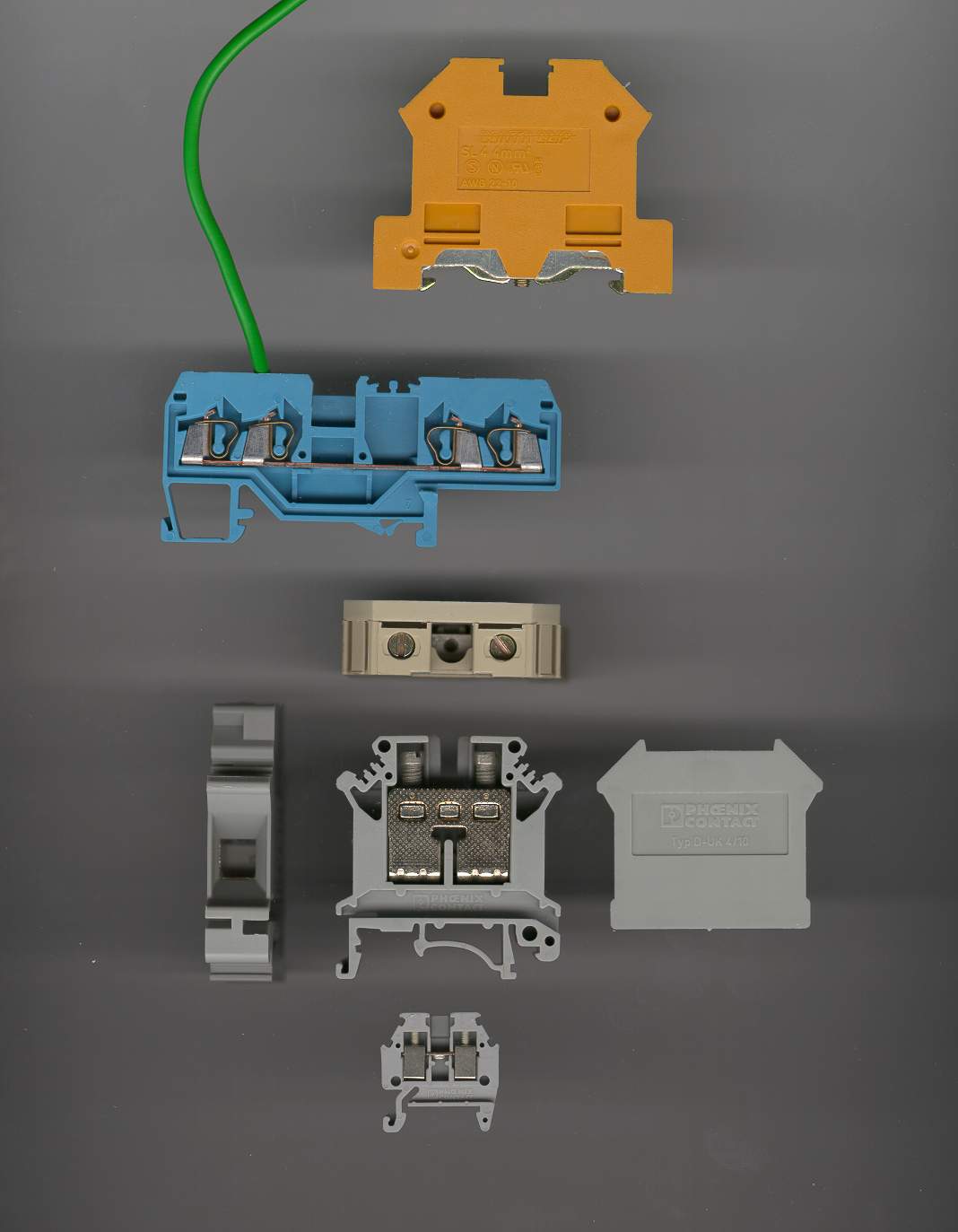

Rail Mounting Terminal Block. For Electrical AC/DC High Current Applications.

Recommended Manufacturers:
Wago (Germany) ®,
CINCH ®,
Phoenix Contact (Germany) ®,
Magnum (USA) ®,
Veiland (Germany) ®,
ITT-Cannon ®,
Siemens ®,
FCT ®,
