Redundant Array of Independent Disks
Level : 0 1 2 3 4 5 6 7 10 53 General Info

RAID 2:
Hamming Code ECC

Each bit of data word is written to a data disk drive (4 in this example: 0 to 3). Each data word has its Hamming Code ECC word recorded on the ECC disks. On Read, the ECC code verifies correct data or corrects single disk errors.

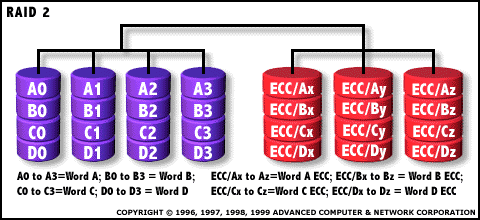

RAID Diagram: Level 2

CHARACTERISTICS/
ADVANTAGES		 DISADVANTAGES
  • "On the fly" data error correction
  • Extremely high data transfer rates possible
  • The higher the data transfer rate required, the better the ratio of data disks to ECC disks
  • Relatively simple controller design compared to RAID levels 3,4 & 5
  • Very high ratio of ECC disks to data disks with smaller word sizes - inefficient
  • Entry level cost very high - requires very high transfer rate requirement to justify
  • Transaction rate is equal to that of a single disk at best (with spindle synchronization)
